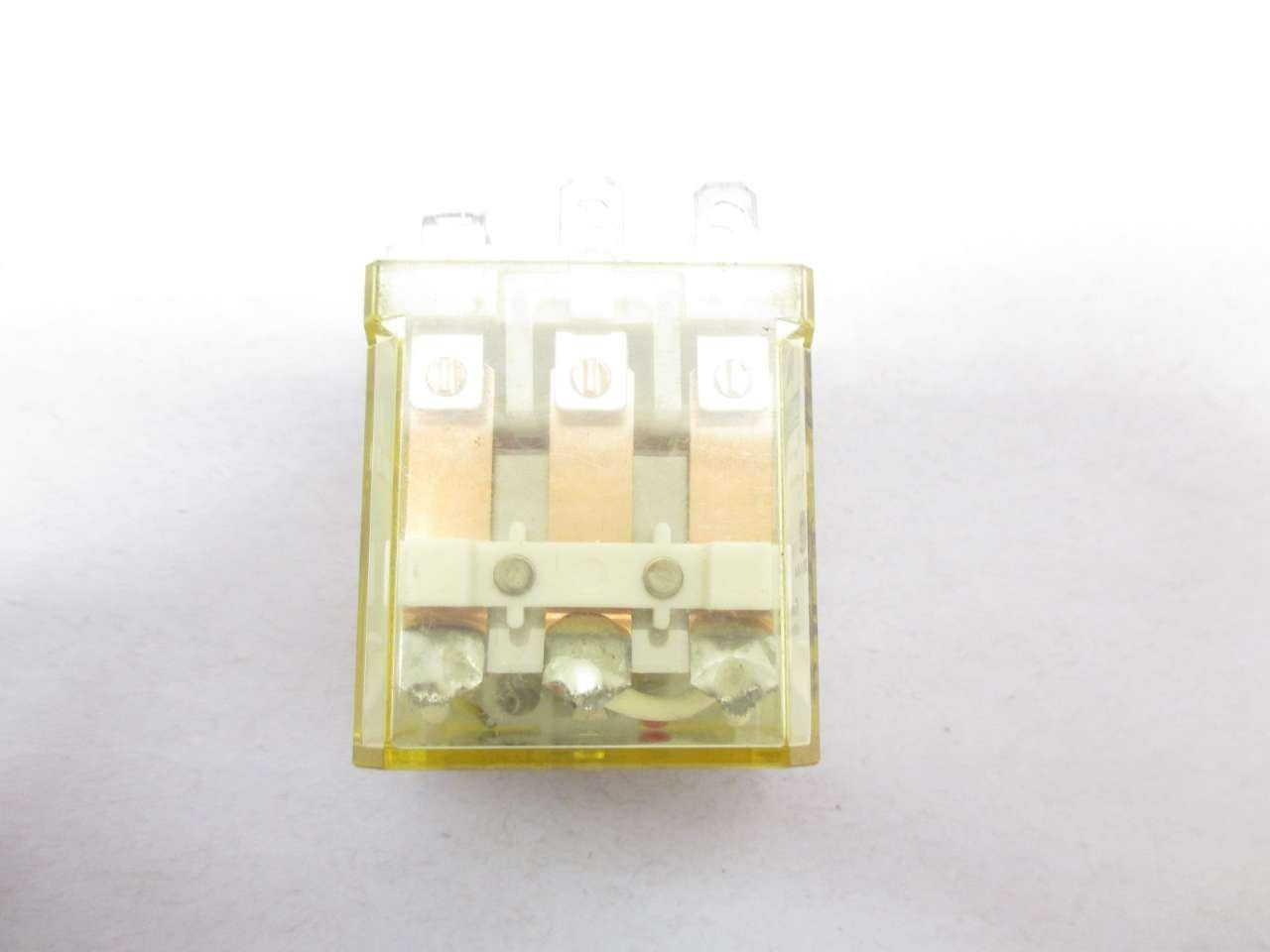

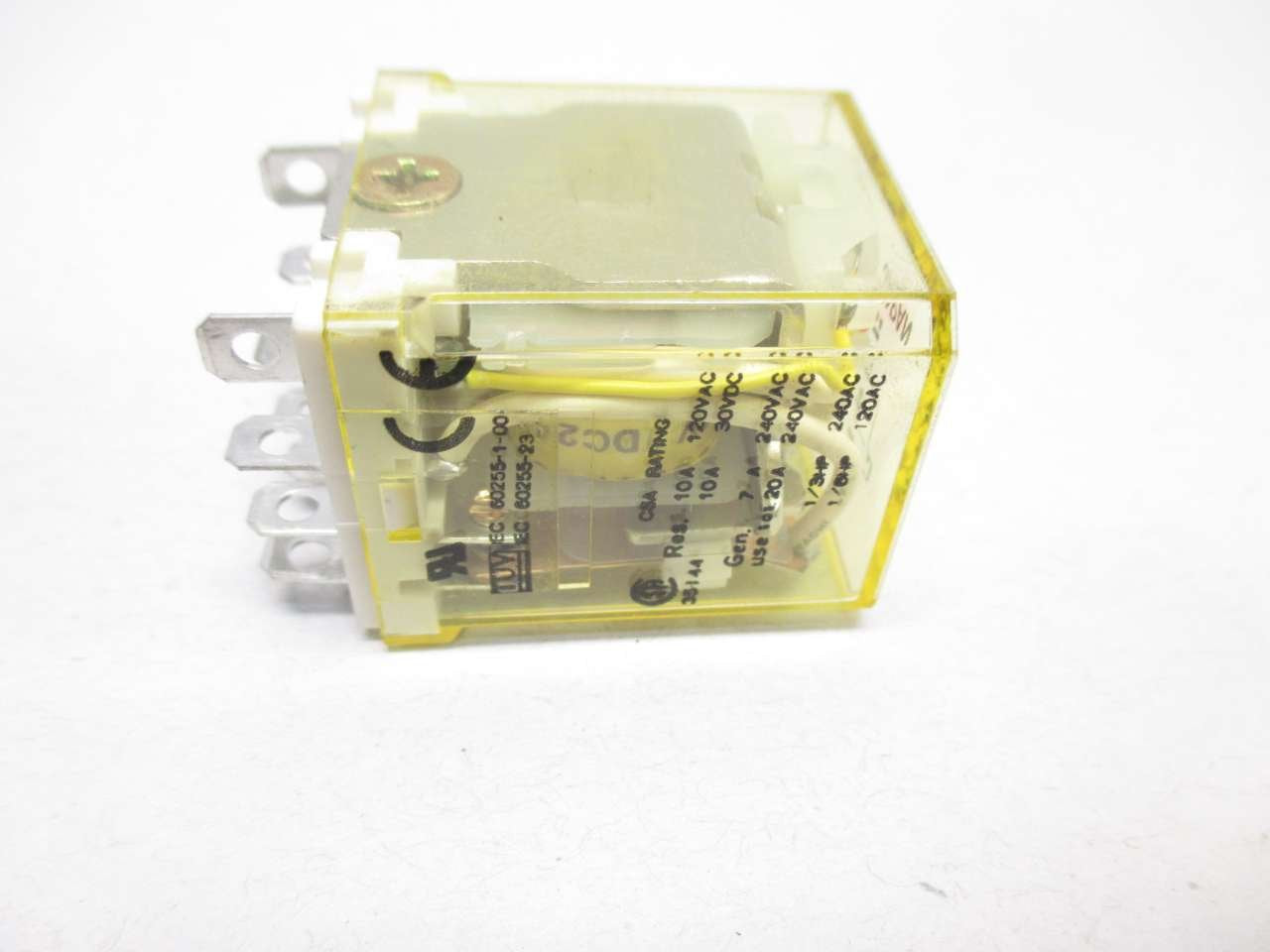

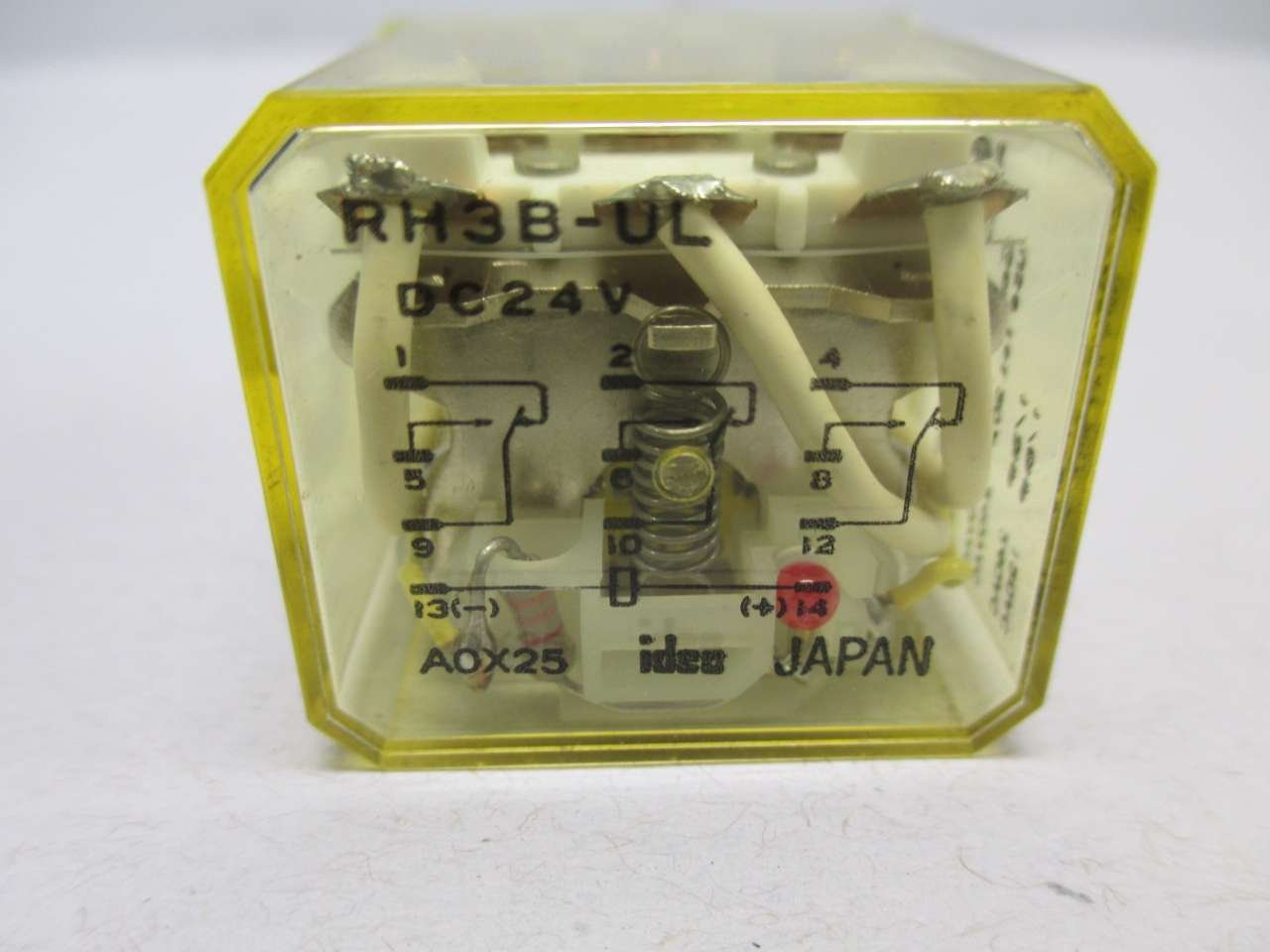

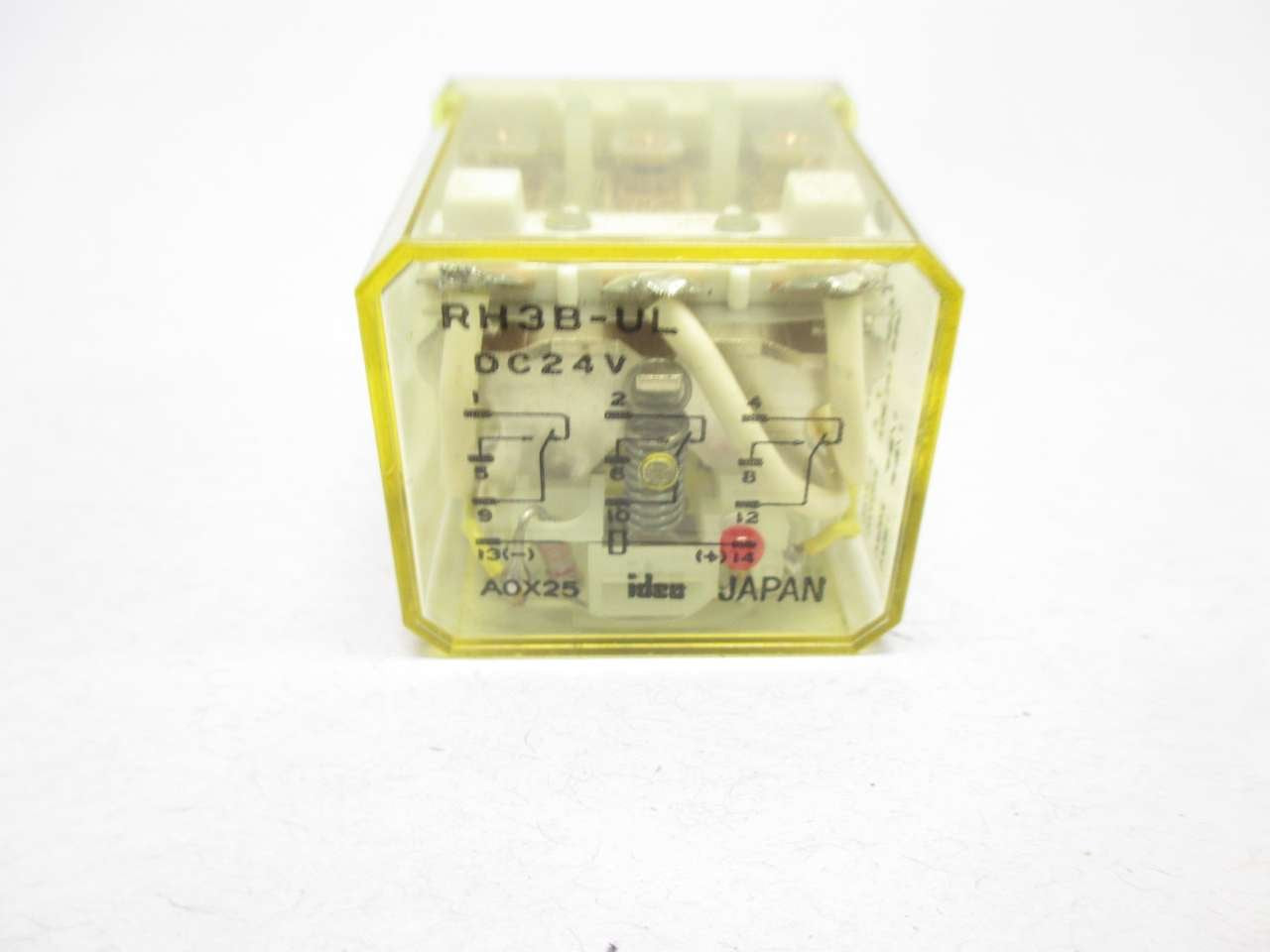

Idec RH3B-ULDC24V compact power relay 10 amp 24 VDC 3PDT blade terminals RH series indicator light

Product Description

The IDEC RH3B-ULDC24V is a compact power relay from the RH Series, featuring blade terminals and a 3PDT contact configuration. This industrial-grade general purpose relay is designed for 24 VDC coil voltage applications, offering a 10 Amp current rating. It includes an indicator light for operational status, making it suitable for various industrial control panels and energy management systems.

• 3PDT contact configuration for versatile switching applications.
• Designed for 24 VDC coil voltage with a 10 Amp current rating.
• Features blade terminals and an integrated LED indicator for status.

Product Highlights

This compact industrial power relay offers reliable 3PDT switching with a 24VDC coil and 10A capacity, ideal for control systems.

Product Information

Standard Information

• Brand: IDEC
• Manufacturer Part Number: RH3B-ULDC24V
• Country of Origin: Japan

Technical Specifications

• Manufacturer: IDEC
• Brand: IDEC
• Model Number: RH3B-ULDC24V
• Product Type: Relay
• Category: Electromechanical Relays
• Coil Voltage: 24VDC
• Current Rating: 10A
• Contact Form: 3PDT
• Mounting Type: Socket
• Indicator: Light
• Contact Material: Rhodium
• Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
• Series: RH
• Must Operate Voltage: 19.2 VDC
• Must Release Voltage: 2.4 VDC
• Operate Time: 25 ms
• Release Time: 25 ms
• Operating Temperature: -25°C ~ 70°C
• Certifications: CE, CSA, cURus, TUV
• Switching Voltage: 120VAC, 30VDC - Max
• Relay Type: General Purpose
• Load - Max Switching: 1200VA, 300W
• Coil Resistance: 400 Ohms
• Coil Current: 60 mA
• Coil Type: Non Latching
