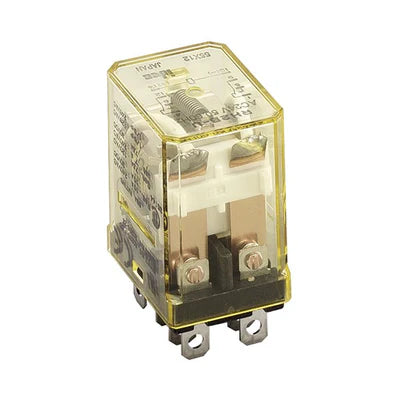

IDEC RH2B-UTAC110-120V Power Relay DPDT 120VAC 10 Amps (43.2x21.5x42) mm Bracket

Product Description

The IDEC RH2B-UTAC110-120V is a robust power relay suitable for a range of industrial applications. If you require consistent and reliable control, this power relay, equipped with double-pole double-throw (DPDT) contacts and a 10A rating, offers a compact and efficient solution.

• Compact design ideal for space-limited environments.
• Reliable operation with automatic functionality at a coil voltage of 120VAC.
• Robust construction that operates effectively between minus 30 to 70 degrees Celsius.

Product Highlights

This relay is essential for professionals in the electrical and industrial sectors. It supports automatic control operations and allows top bracket mounting, ensuring easy installation and maintenance.

Specifications

• Brand: IDEC
• MPN: RH2B-UTAC110-120V
• Current Rating: 10 Amps
• Coil Voltage: 120 Volts
• Contact Type: DPDT
• Dimensions: 43.2 mm x 21.5 mm x 42 mm
• Operation Mode: Automatic
• Temperature Rating: -30 to 70 degrees Celsius
• Mounting Type: Top Bracket
• Standards/Approvals: CSA Certified, CE Marked, cRUus Certified, TDV Approved
