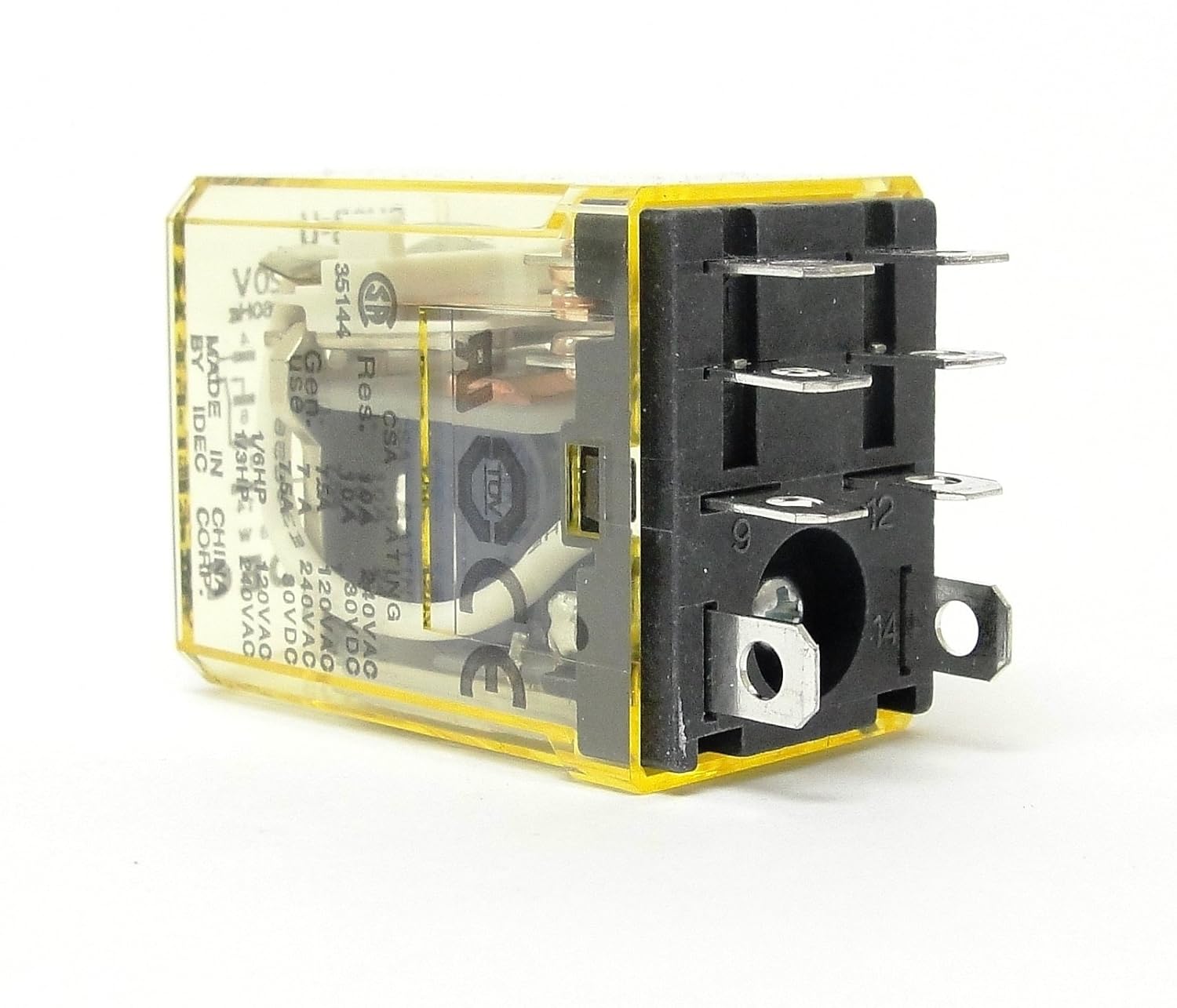

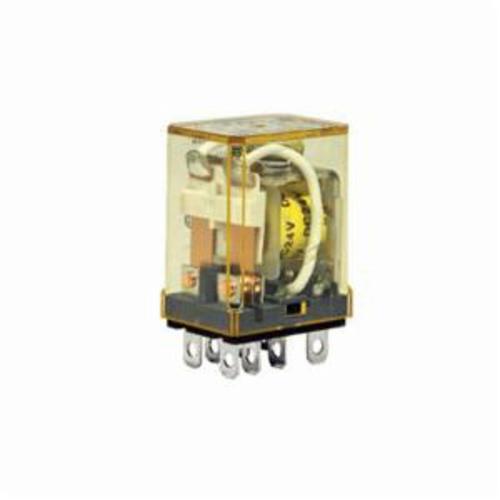

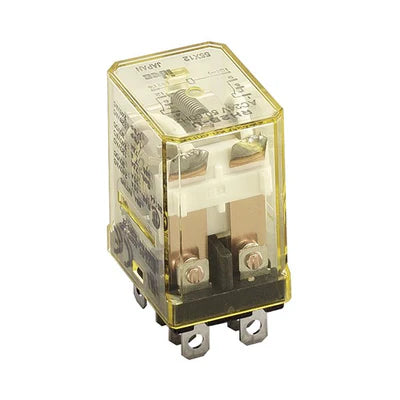

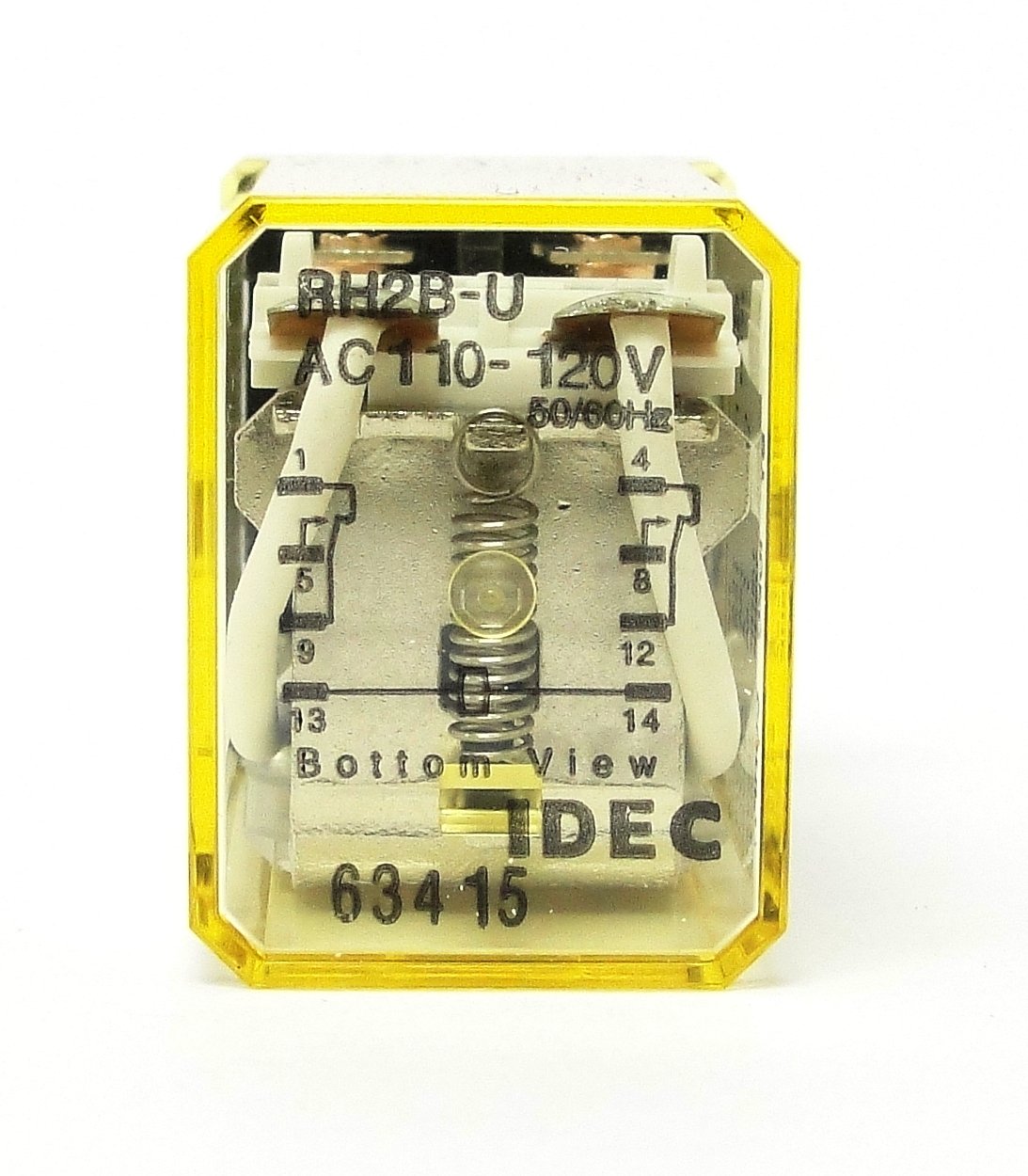

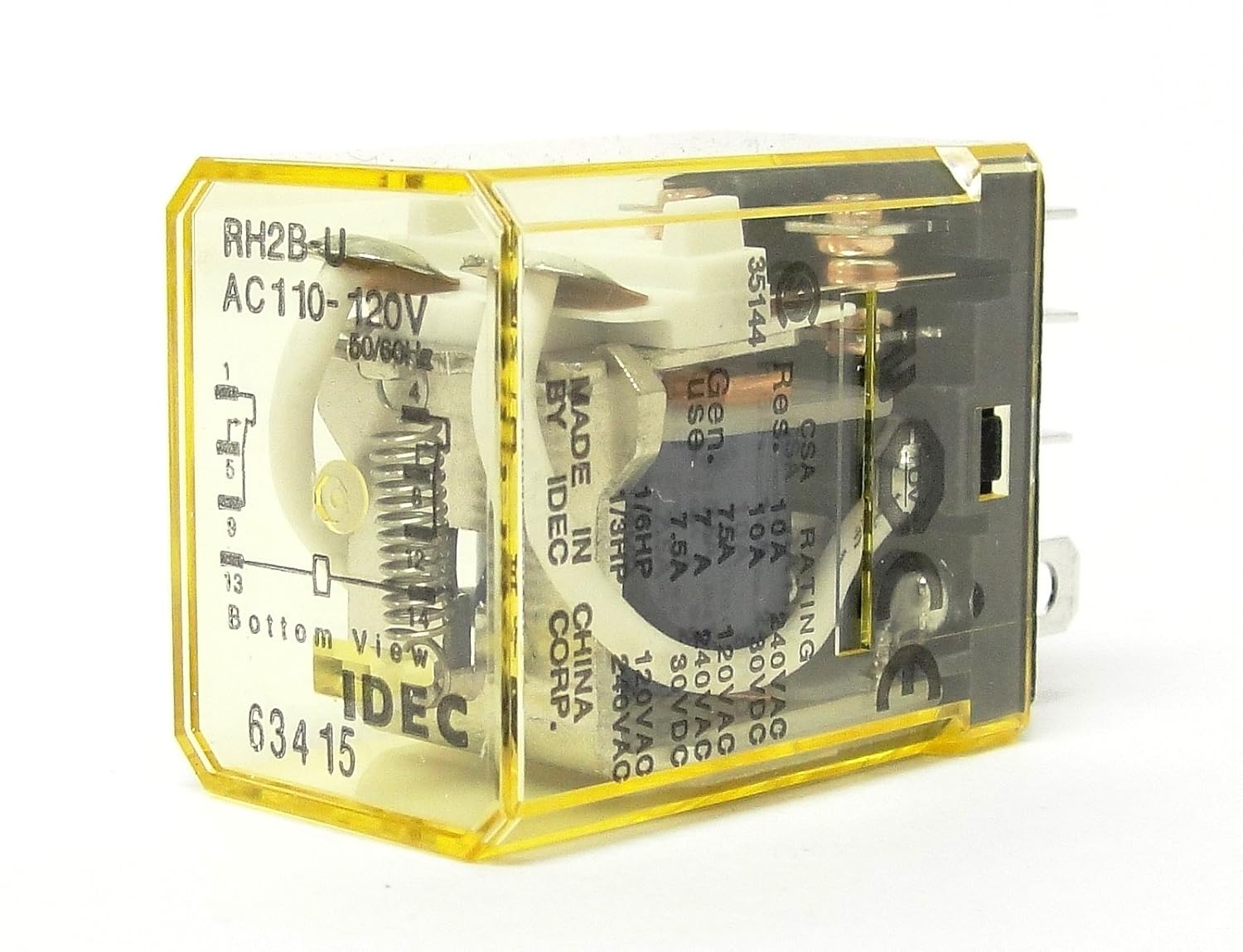

IDEC RH2B-UAC110-120V Power Relay DPDT 110-120VAC 10A

Product Description

The IDEC RH2B-UAC110-120V is a robust DPDT power relay designed for a range of industrial applications. Constructed to perform reliably within a compact design, it facilitates precise control over high-capacity switching operations.

• Rated for 10A at a voltage range of 110-120VAC.
• Supports both plug-in and blade terminal connections for versatile installation.
• Operates efficiently within a temperature range of -25 to 70 degrees Celsius.

Product Highlights

This relay offers shock and vibration resistance, ensuring it maintains functionality in challenging environments. It is capable of 500,000 electrical operations, highlighting its durability and longevity.

Product Information

Standard Information

• Brand: IDEC
• Series: RH Series

Technical Specifications

• Dimensions: 35.6 mm H x 27.5 mm W x 21 mm D
• Frequency: 50/60 Hz
• Power: 1.4/1.2 VA
• Electrical Operating Frequency: 1800 operations/hour maximum
• Mechanical Operating Frequency: 18000 operations/hour maximum
• Dielectric Strength: 2000V AC, 1 minute
• Contact Material: Silver cadmium oxide
