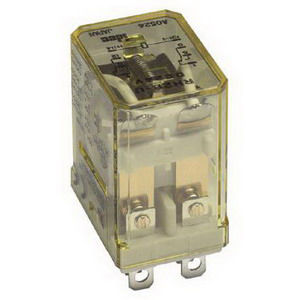

IDEC RH2B-UTAC24V DPDT 10AMP 24VAC General Purpose Power Relay

Product Description

The IDEC RH2B-UTAC24V is a robust general purpose power relay designed for exceptional performance in various industrial applications. Employing a DPDT mechanism, it operates with a 24VAC power supply, ensuring reliable operation across different circuits.

• Durable construction with silver cadmium oxide contacts
• Compact size for easy installation and space-saving within panels
• Equipped with a variety of terminal options including quick connect and solder types

Product Highlights

This power relay is not only versatile due to its dual pole, double throw (DPDT) configuration but also offers a high switching capacity of 10A. Its design includes both top mounting and panel mount socket choices, complemented by an optional indicator light and check button for enhanced functionality.

Product Information

Technical Specifications

• Brand: IDEC
• MPN: RH2B-UTAC24V
• Type: General Purpose
• Coil Voltage: 24 VAC
• Voltage Rating: 250 VAC
• Amperage Rating: 10 A
• Coil Resistance: 153 Ohm
• Contact Material: Silver Cadmium Oxide
• Contact Configuration: DPDT
• Terminal Type: Quick Connect, Solder
• Mounting Type: Plug-In Base
• Dimensions: 1.4 inches H x 0.85 inches W x 1.7 inches D
