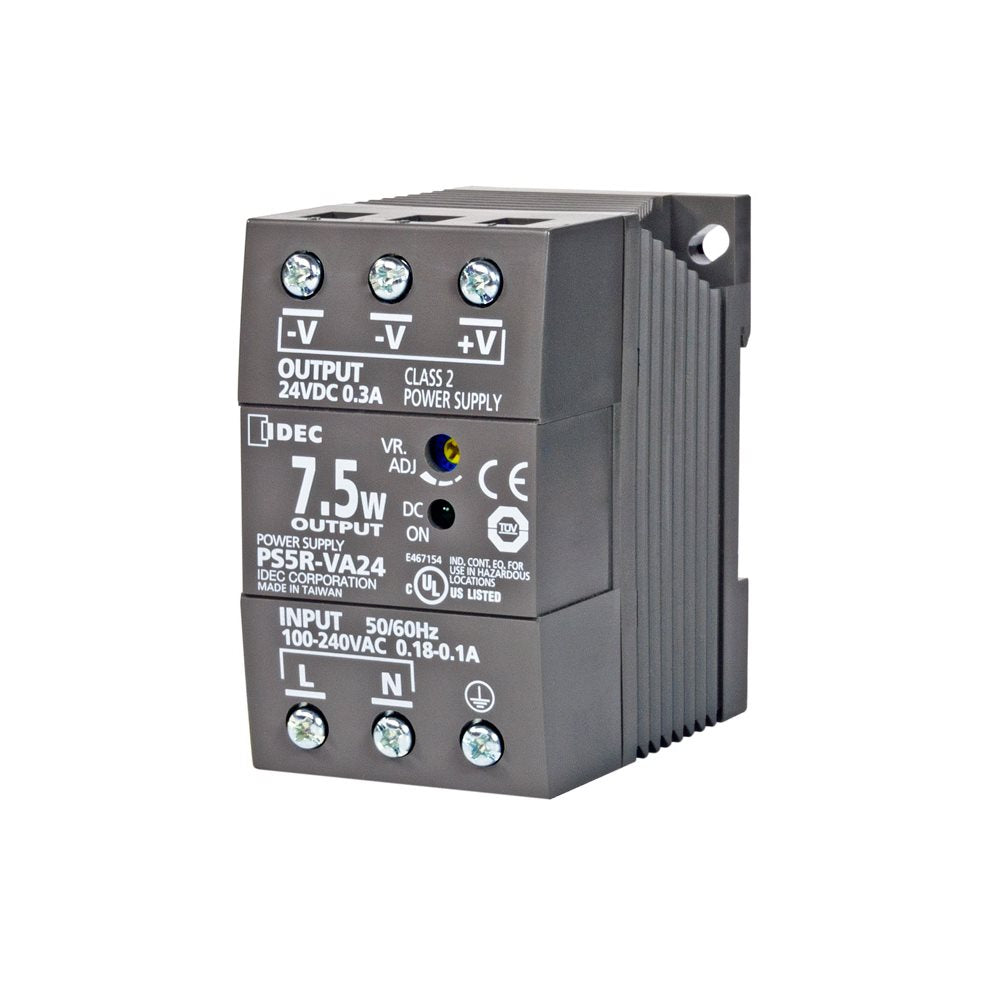

IDEC PS5R-VA24 PS5R-V Switching Power Supply 7.5W 24VDC DIN

Product Description

The IDEC PS5R-VA24 is a reliable switching power supply designed to output twenty-four volts direct current. With a maximum output current of zero point three amps, this power supply is effective for various applications in electrical systems. It accepts input voltages ranging from one hundred to two hundred forty volts alternating current, making it versatile in different installation environments.

• Compact size helps maximize panel space
• Operates efficiently in a wide temperature range
• Spring-up terminals allow compatibility with ring and fork terminals

Product Highlights

This power supply is approved for use in Class I and Division 2 hazardous locations and can be mounted in six different orientations. It is RoHS compliant and backed by a five-year factory warranty.

Product Information

Standard Information

• Brand: IDEC
• Part Number: PS5R-VA24

Technical Specifications

• Input Voltage: Eighty-five to two hundred sixty-four volts AC or one hundred to three hundred seventy volts DC
• Output Voltage: Twenty-four volts DC
• Output Current: Zero point three amps
• Output Power: Seven point five watts
• Item Weight: Zero point four pounds per EA
• Mounting: DIN Rail
• Isolation: Isolated
