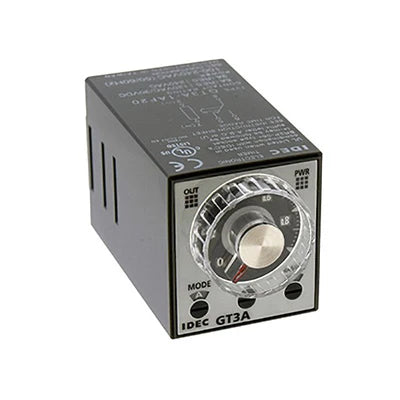

IDEC GT3A-3AF20 Multi-Mode Timer 100-240VAC DPDT Delay Replacement GT3D-3AF20

Product Description

The IDEC GT3A-3AF20 is a versatile multi-mode timer, designed for precise control in industrial applications. This product offers a range of functionality including delay and DPDT output in a durable and compact design, suitable for various industrial environments.

• Multimode operations with four selectable modes.
• External control options for start, reset, and gate.
• Built-in LEDs for status indication.

Product Highlights

The IDEC GT3A-3AF20 timer supports a voltage range from 100 to 240 VAC, adapting to different power supplies seamlessly. It integrates easily into existing systems with its socket mounting design.

Product Information

Standard Information

• Brand: IDEC
• MPN: GT3A-3AF20

Technical Specifications

• Mode: Multi-Mode Operation
• Voltage: 100 to 240 VAC
• Contacts: DPDT
• Time Setting Range: 0.1 seconds to 180 hours
• Enclosure Ratings: IP20/IP40
• Temperature Operating Range: -10 to 50 degrees Celsius
• Dimensions: 1.57 in W x 2.76 in D x 1.42 in H
• Amperage: 5 A
