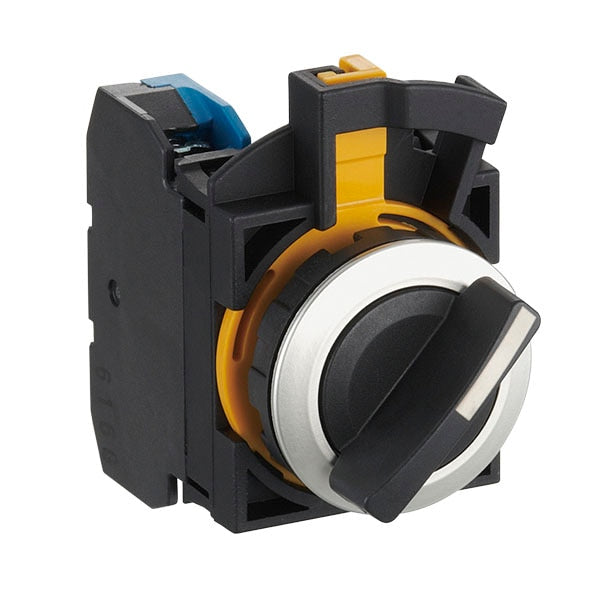

IDEC CW4S-2E10 Selector Switch Non-Illuminated 22mm

Product Description

The IDEC CW4S-2E10 is a non-illuminated selector switch designed for various applications. This switch features a metallic bezel and a knob-style operator. The diameter of the mounting hole is twenty-two point three millimeters, fitting standard panel openings.

• Two-position selector with maintained spring return
• Includes one normally open (1NO) contact
• Screw terminal connection for easy installation

Product Highlights

This selector switch is ideal for control panels, offering straightforward operation and reliable performance. It is suitable for use in various environments where electrical control is required.

Product Information

Standard Information

• Product Type: Selector Switch
• Illumination: Non-Illuminated

Technical Specifications

• MPN: CW4S-2E10
• Bezel Type: Metallic
• Number of Positions: 2 Positions
• Spring Return: Maintained
• Selector Switch Type: Knob
• Contact Configuration: 1NO
• Mounting Hole Diameter: 22.3mm
• Height: 41.4mm
• Width: 30mm
• Depth: 53mm
• Current Capacity @ 120 VAC: 5A
• Current Capacity @ 24 VDC: 4A
• Contact Material: Silver
