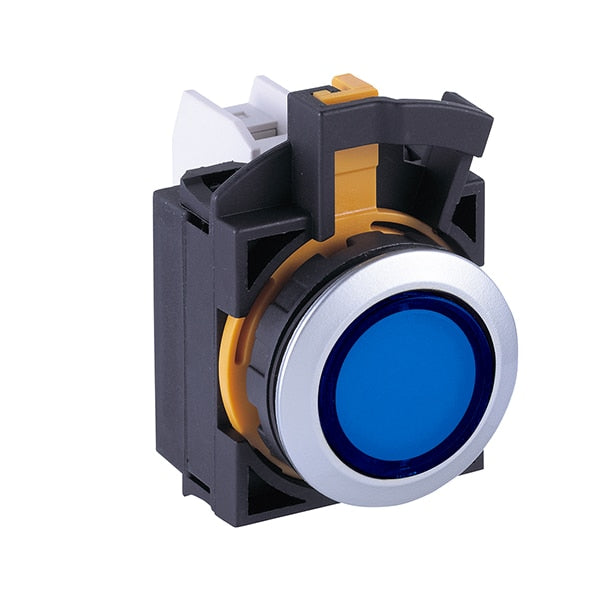

IDEC CW4P-1EQHS Pilot Light 120 VAC 22mm

Product Description

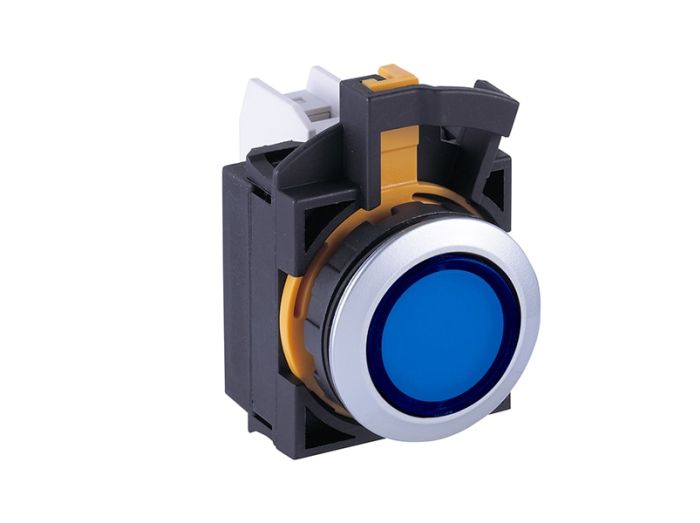

The IDEC CW4P-1EQHS is a pilot light made for industrial signaling applications. This unit has a mounting diameter of twenty-two millimeters and is designed for easy installation in control panels and machinery.

• LED technology provides blue light indication.
• Metallic bezel with round flush lens.
• Screw terminal connection for reliable electrical connections.

Product Highlights

This pilot light is suitable for various control systems, offering a clear visual signal for operators. The blue illumination is ideal for distinguishing different machine states.

Product Information

Standard Information

• Manufacturer: IDEC
• Manufacturer Part Number: CW4P-1EQHS

Technical Specifications

• Product Series: CW
• Product Type: Pilot Light
• Mounting: 22 mm
• Lamp Type: LED
• Lens/Button Shape: Round
• Lens Color: Blue
• Bezel: Metal Round
• Nominal Lamp Voltage: 120 VAC
• Protection Rating: IP65
• Approvals: CE, cUL, UL, TUV, CCC, CSA
• Terminal Shape: Screw terminal
• Illumination: Illuminated
• Pilot Light Operator Type: Round Flush
• Bezel Type: Metallic
• Height: 41.4 mm
• Width: 30 mm
• Depth: 42.4 mm
• Net Weight: 0.0629 lbs
