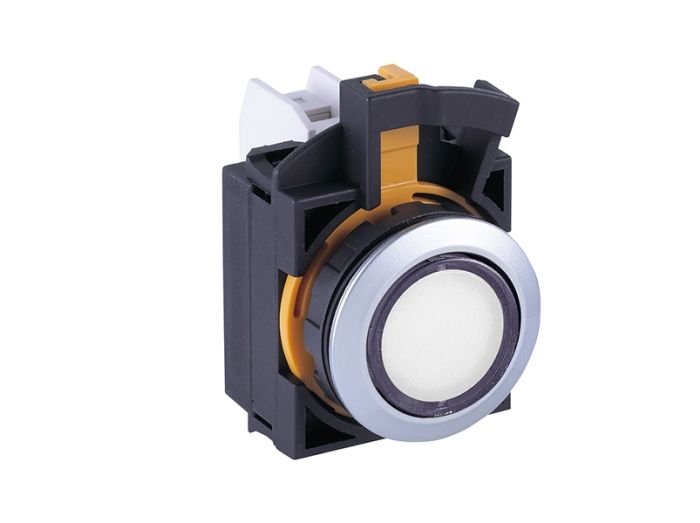

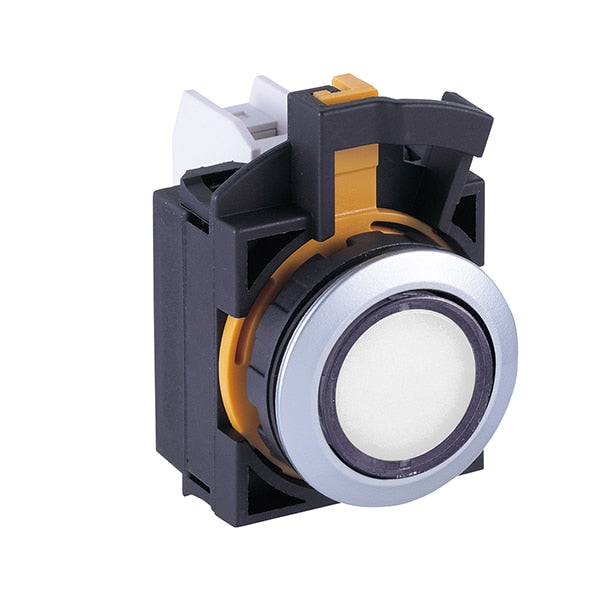

IDEC CW4P-1EQHPW Pilot Light 120V 22mm

Product Description

The IDEC CW4P-1EQHPW is a pilot light intended for use in industrial signaling applications. This model features a mounting size of twenty-two millimeters, making it suitable for standard panel cutouts. The light utilizes LED technology, which provides bright illumination with low power consumption. It connects via screw terminals and is rated for an input voltage of one hundred twenty VAC.

• Designed for twenty-two millimeter panel cutouts
• LED technology for efficient illumination
• Screw terminal connections for easy wiring

Product Highlights

This pilot light offers reliable visual indicators for operational status in machinery and control panels.

Product Information

Standard Information

• Manufacturer: IDEC
• Manufacturer Part Number: CW4P-1EQHPW

Technical Specifications

• Product Series: CW
• Product Type: Pilot Light
• Mounting: 22 mm
• Lamp Type: LED
• Lens/Button Shape: Round
• Lens Color: Pure White
• Bezel Type: Metallic
• Nominal Lamp Voltage: 120 VAC
• Illumination Color: Pure White (PW)
• Protection Rating: IP65
• Approvals: CE, cUL, UL, TUV, CCC, CSA
• Height: 41.4 mm
• Width: 30 mm
• Depth: 42.4 mm
• Net Weight: 0.0629 lbs
