IDEC CW4P-1EQHG Pilot Light 120VAC (22mm) Replacement MPN

Product Description

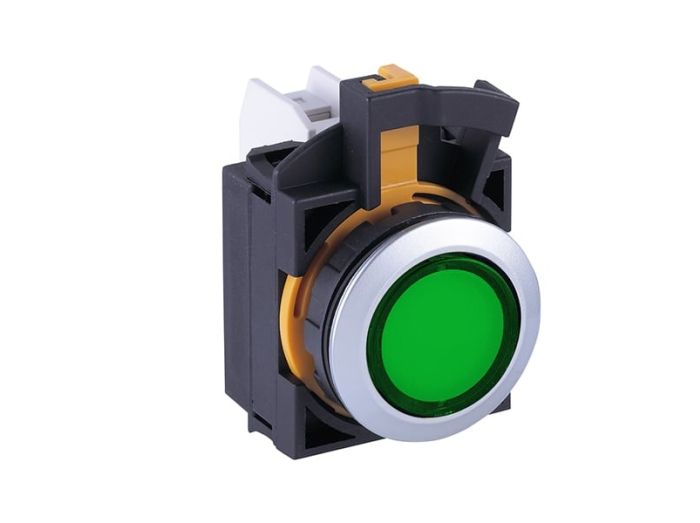

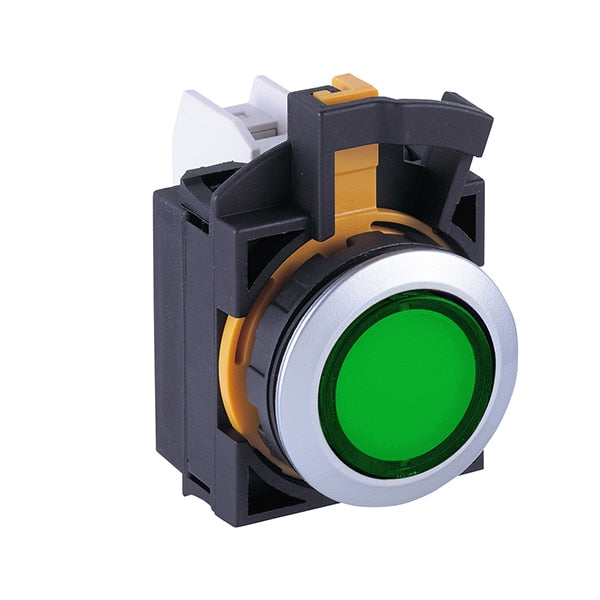

The IDEC CW4P-1EQHG is a pilot light used to indicate power status. This product mounts in a space of twenty-two millimeters. The light is green and utilizes an LED for illumination. It operates at 120VAC and connects via a screw terminal. This pilot light is ideal for various applications where visual indicators are required.

• Metallic bezel
• LED light for illumination
• Round flush lens

Product Highlights

This pilot light is suitable for panel mounting and offers reliability and efficiency in signaling functions.

Product Information

Standard Information

• Manufacturer Part Number: CW4P-1EQHG
• Manufacturer: IDEC

Technical Specifications

• Product Series: CW
• Family Series: IDEC Pilot Lights, CW Series
• Mounting: 22 mm
• Lamp Type: LED
• Lens/Button Shape: Round
• Lens Color: Green
• Bezel Type: Metallic
• Nominal Lamp Voltage: 120 VAC
• Protection Rating: IP65
• Approvals: CE, cUL, UL
• Net Weight: 0.0629 lbs
• Product Type: Pilot Light
• Terminal Shape: Screw terminal
• Illumination Color: Green (G)
• Illumination: Illuminated
• Illumination Voltage: 120VAC
• Pilot Light Operator Type: Round Flush
