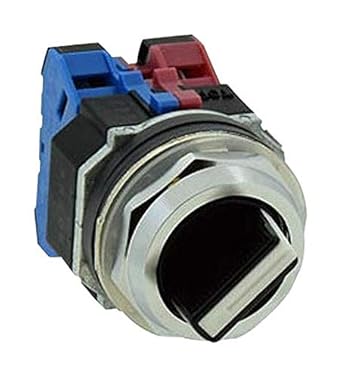

IDEC ASD211NU Selector Switch 10 Amps 2-Position 1NO-1NC

Product Description

The IDEC ASD211NU is a selector switch designed for use in pilot duty control for electrical devices. This switch has a knob type operator and includes two maintained positions. It offers one normally open (1NO) and one normally closed (1NC) contact configuration. It makes use of screw terminals for secure electrical connections and is suitable for manual selection between two operational states.

• Knob-type selector switch with two maintained positions.
• Includes 1NO and 1NC contact configuration.
• Utilizes screw terminals for reliable electrical connections.

Product Highlights

The IDEC ASD211NU allows for straightforward manual control in various electrical applications.

Product Information

Standard Information

• Product Type: Selector Switch
• Manufacturer: IDEC

Technical Specifications

• Action Mode: Maintained
• Contact Configuration: 1NO-1NC
• Terminal Shape: Screw terminal
• Number of Positions: 2
• Diameter: 30.5 mm
• Contact Rating: 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum
• Contact Resistance: 50 Ω maximum (initial value)
• Electrical Life: 500,000 minimum operations
• Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65
• Applicable Wire Size: Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG
• Mechanical Life: 500,000 minimum operations
• Mounting: 0.878 (2.23 cm) hole
• Panel Thickness: Adjustment range 0.04 to 0.24 (0.10 to 0.61 cm)
• Approvals: UL File #E68961; CSA File #LR48366, CE, RoHS
• Current Rating: 10 Amps
• Circuit Type: 2-way
• International Protection Rating: IP54
• Controller Type: Ring
• Switch Type: Knob Switch
• Material: Steel, zinc
• Mounting Type: DIN Rail Mount
• Specification Met: UL
• Operation Mode: ON-OFF
