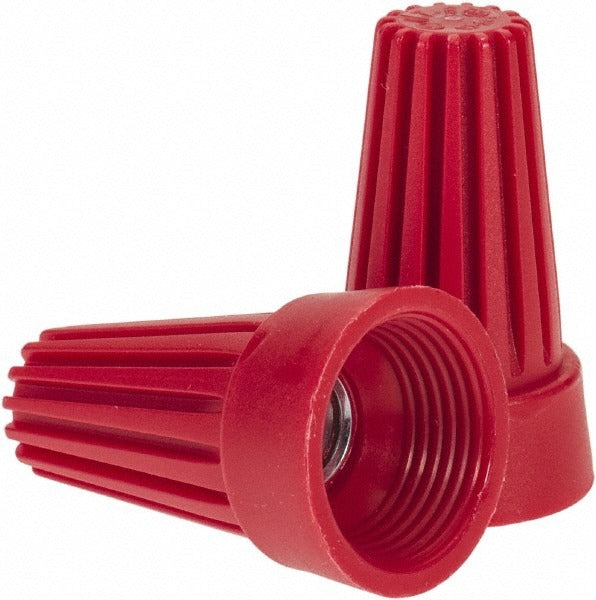

Ideal WT6-B Twist-on Wire Connector Red 250 Pack 600V

Product Description

The IDEAL WT6-B is a standard twist-on wire connector designed for making secure electrical splices in residential, commercial, and industrial wiring applications. Rated at 600 volts with a maximum operating temperature of 221 degrees F, this connector uses a flame-retardant shell to reduce fire risk at the termination point. The red color coding corresponds to a minimum compatible wire size of 2 AWG, helping electricians quickly identify the correct connector for the conductor size on the job. Each package contains 250 connectors, making it a practical stocking quantity for service vans and panel shops.

The WT6-B is used wherever twist-on splices are required in branch circuit wiring, fixture connections, device rough-in, and junction box terminations. It suits standard residential and light commercial work where conductors are joined inside listed enclosures. The flame-retardant housing meets requirements in installations where code calls for connectors rated under UL 486C and UL 774A. Licensed electricians and apprentices routinely use this connector type on NEC-governed installations.

Key Features

• Flame-retardant shell reduces fire propagation risk at splice points
• 600-volt rating covers standard branch circuit and low-voltage applications
• 221 degrees F maximum operating temperature for use in warm or enclosed spaces
• Red color coding identifies minimum 2 AWG compatible wire size at a glance
• UL Listed 486C and UL Listed 774A certified for code-compliant installations
• 250-count package quantity supports high-volume field or shop use

Compatibility

Designed as a standard twist-on wire connector for use with conductors starting at 2 AWG in listed junction boxes, outlet boxes, and enclosures per NEC requirements.

Installation Notes

Installation is performed by a licensed electrician or qualified apprentice. De-energize and lock out the circuit at the panel before making or breaking any splice. Strip conductors to the length recommended by the connector manufacturer, insert wires into the connector, and twist clockwise until firm resistance is felt and no bare copper is exposed below the skirt. Do not exceed the connector's rated conductor combination or voltage rating.
