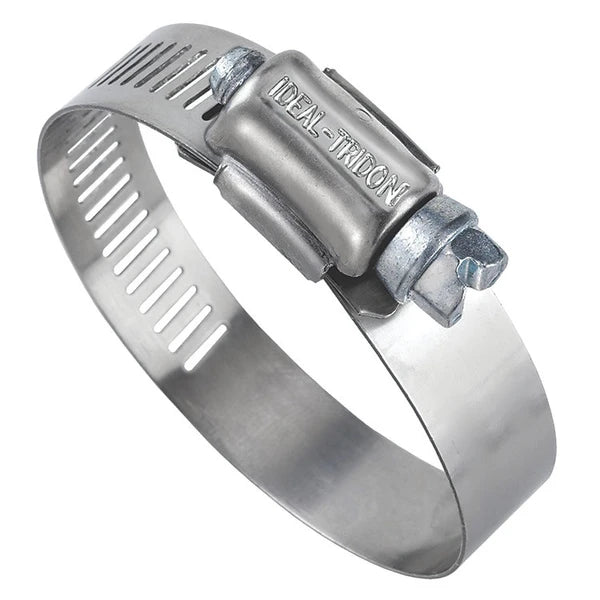

Ideal Tridon 6820 Stainless Steel Hose Clamp 3/4 Inches to 1 3/4 Inches

Product Description

The Ideal Tridon 6820 is an all stainless steel hose clamp built for demanding industrial and trade applications. It features a 9/16-inch wide band made from 200-series stainless steel and a 5/16-inch hex-head screw made from 410 stainless steel. The clamp fits hose and tube outside diameters ranging from 3/4 inches to 1 3/4 inches, making it a versatile choice across a wide range of pipe and hose sizes. The housing is also constructed from 200-series stainless steel, giving the entire assembly strong corrosion resistance in wet, chemical-exposed, or high-humidity environments. HVAC technicians, plumbers, pipefitters, and industrial maintenance professionals rely on this type of clamp to secure hoses on condensate drain lines, coolant lines, water supply connections, and ventilation duct fittings. The recommended installation torque is 35 inch-pounds, which helps ensure a consistent, leak-free seal without overtightening and damaging the hose or fitting. The 5/16-inch hex-head drive is compatible with standard hand tools and power drivers, speeding up installation in the field. The Hy-Gear band design distributes clamping force evenly around the full circumference of the hose, reducing the risk of localized pressure points that can cause hose failure over time. This clamp is a direct fit for applications where standard carbon steel clamps would corrode prematurely, such as outdoor installations, marine environments, chemical processing lines, and food-service equipment. Stainless steel construction also meets the material requirements for many commercial plumbing and HVAC codes. Whether you are securing a flexible hose on a chiller line, a condensate drain fitting, or an industrial coolant system, the Ideal Tridon 6820 delivers reliable, long-term clamping performance.

• All stainless steel construction: 200-series band and housing, 410 stainless hex-head screw for corrosion resistance
• Fits hose outside diameters from 3/4 inches to 1 3/4 inches with a 9/16-inch wide band for secure, even clamping
• Installs with standard 5/16-inch hex-head tools at 35 inch-pounds recommended torque

Product Highlights

The Ideal Tridon 6820 stainless steel hose clamp provides reliable, corrosion-resistant clamping for industrial, HVAC, and plumbing applications across a 3/4-inch to 1 3/4-inch diameter range. Its all-stainless construction and even-pressure Hy-Gear band design make it a durable solution for demanding environments.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6820

Technical Specifications

• Clamp Range: 3/4 inches to 1 3/4 inches
• Band Width: 9/16 inches
• Band Material: 200 Stainless Steel
• Housing Material: 200 Stainless Steel
• Screw Drive: 5/16 inches Hex Head
• Screw Material: 410 Stainless Steel
• Installation Torque: 35 inch-pounds (4 Nm)
