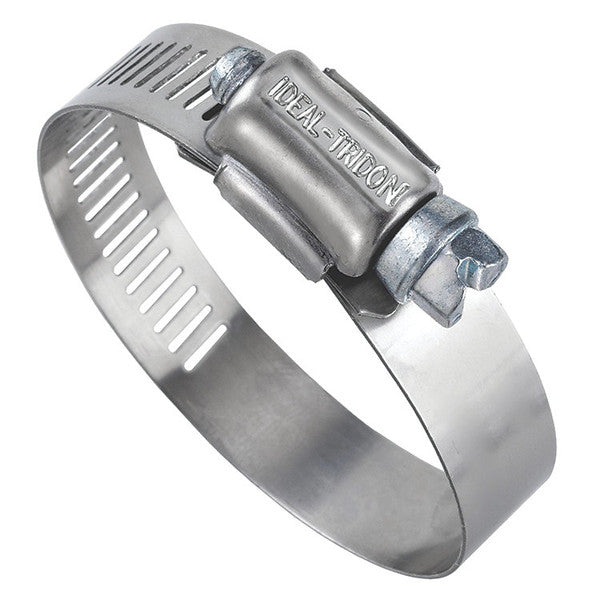

Ideal Tridon 6816 Stainless Steel Hose Clamp 11/16 Inch to 1-1/2 Inch Range

Product Description

The Ideal Tridon 6816 is an all stainless steel hose clamp built for demanding industrial and trade applications. This clamp belongs to the Hy-Gear 68 series, a line known for its heavy-duty construction and reliable sealing performance. It is designed to fit hose and tube diameters ranging from 11/16 inches to 1-1/2 inches, making it a versatile choice for a wide range of plumbing, HVAC, and industrial piping installations.

The band is 9/16 inches wide and constructed from 200-grade stainless steel, which provides strong corrosion resistance in wet and humid environments. The housing is also made from 200 stainless steel, keeping the entire clamp consistent in material and corrosion performance. The fastening screw is a 5/16 inch hex-head design made from 410 stainless steel, a harder grade that holds up well under repeated tightening and in high-vibration conditions.

The recommended installation torque is 35 inch-pounds, which is 4 Newton-meters. This torque specification helps technicians install the clamp correctly without over-tightening and damaging the hose or fitting. Consistent torque application also helps maintain a leak-free seal over the long term.

HVAC technicians, plumbers, pipefitters, and industrial maintenance professionals rely on stainless steel clamps like the 6816 for connecting rubber hoses, silicone couplers, and flexible tubing to rigid fittings and pipes. The all-stainless construction is especially well suited for outdoor installations, chilled water systems, condensate lines, and anywhere corrosion resistance is a priority. The hex-head screw works with standard nut drivers and socket sets, speeding up installation in tight spaces.

• All stainless steel construction with 200 stainless band and housing for strong corrosion resistance
• 5/16 inch hex-head screw in 410 stainless steel for reliable fastening and easy installation with standard tools
• Fits hose diameters from 11/16 inches to 1-1/2 inches with a recommended torque of 35 inch-pounds

Product Highlights

The Ideal Tridon 6816 Hy-Gear stainless steel hose clamp delivers heavy-duty clamping performance across a 11/16 inch to 1-1/2 inch diameter range, with fully stainless construction suited for corrosive and industrial environments.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6816

Technical Specifications

• Clamp Range: 11/16 inches to 1-1/2 inches
• Band Width: 9/16 inches
• Band Material: 200 Stainless Steel
• Housing Material: 200 Stainless Steel
• Screw Size: 5/16 inches Hex Head
• Screw Material: 410 Stainless Steel
• Installation Torque: 35 inch-pounds (4 Nm)
