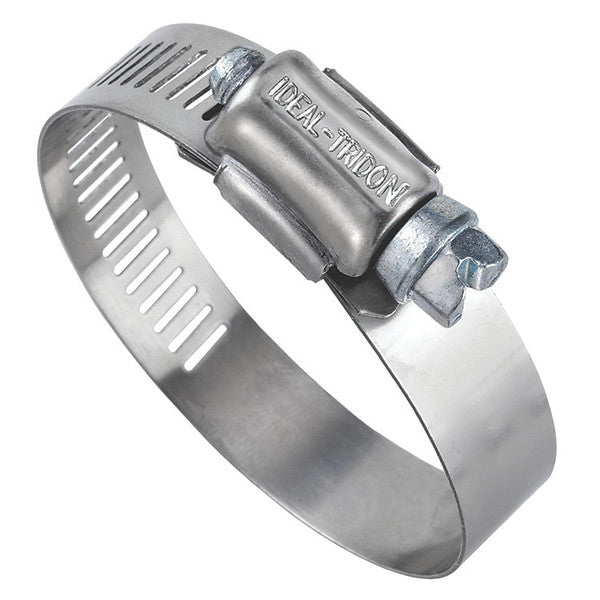

Ideal Tridon 6812 Stainless Steel Hose Clamp 1/2 Inch to 1-1/4 Inch Range

Product Description

The Ideal Tridon 6812 is an all stainless steel hose clamp built for demanding industrial and trade applications. It is part of the Hy-Gear 68-0 series, a line known for durability and consistent clamping performance across a wide range of pipe and hose diameters. This clamp covers a clamping range from 1/2 inches to 1-1/4 inches, making it a versatile choice for plumbers, HVAC technicians, and industrial mechanics who need a reliable, corrosion-resistant fastening solution.

The band measures 9/16 inches wide and is made from 200 series stainless steel, which provides strong resistance to rust, oxidation, and chemical exposure. The housing is also constructed from 200 stainless steel, keeping the entire clamp body consistent in material quality. The screw is a 5/16 inch hex head design made from 410 stainless steel, a grade selected for its higher strength and hardness compared to standard stainless. This combination of materials ensures the clamp performs well in wet environments, outdoor installations, and areas exposed to corrosive fluids or gases.

Installation torque is rated at 35 inch-pounds, which equals 4 Newton-meters. This spec gives technicians a precise target torque value, reducing the risk of over-tightening and band distortion. The hex head screw is compatible with standard hex drivers and nut drivers, speeding up installation on the job site. These clamps are commonly used on coolant hoses, radiator connections, intake manifold boots, HVAC flex duct connections, plumbing drain lines, and general-purpose pipe clamping tasks. The all stainless construction makes the 6812 a go-to clamp for food service equipment, marine environments, and any setting where carbon steel would corrode too quickly. HVAC and plumbing pros keep these on hand for flex connector installations and rubber coupling repairs.

• All stainless steel construction including band, housing, and screw for maximum corrosion resistance
• 5/16 inch hex head screw made from 410 stainless for high-strength, repeatable tightening
• Rated installation torque of 35 inch-pounds for precise and consistent clamp installation

Product Highlights

The Ideal Tridon 6812 delivers a fully stainless steel hose clamp solution with a defined torque rating and hex head screw, making it a reliable choice for industrial, plumbing, and HVAC clamping needs in corrosive or wet environments.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6812

Technical Specifications

• Clamping Range: 1/2 inches to 1-1/4 inches
• Band Width: 9/16 inches
• Band Material: 200 Stainless Steel
• Housing Material: 200 Stainless Steel
• Screw Size: 5/16 inches Hex Head
• Screw Material: 410 Stainless Steel
• Installation Torque: 35 in-lbs (4 Nm)
