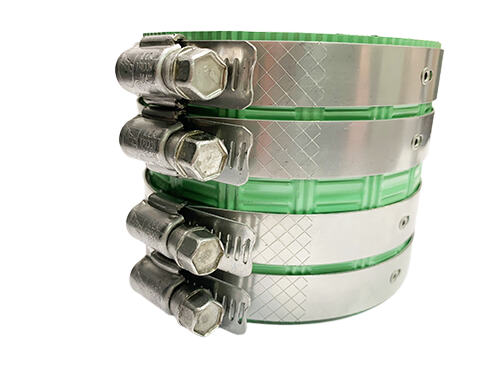

Ideal Tridon 6220H8G Super Heavy Duty Green Shield No-Hub Couplings

Product Description

The Ideal Tridon 6220H8G Super Heavy Duty Green Shield No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. These couplings feature a wider footprint on the joint and an increased number of high torque capacity clamps, adding structural rigidity and enhanced sealing pressure.

• Quality line of Heavy Duty couplings
• Structural reinforcement
• Higher sealing pressures

Product Highlights

Features a wider footprint and increased number of high torque capacity clamps for enhanced sealing.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6220H8G

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
