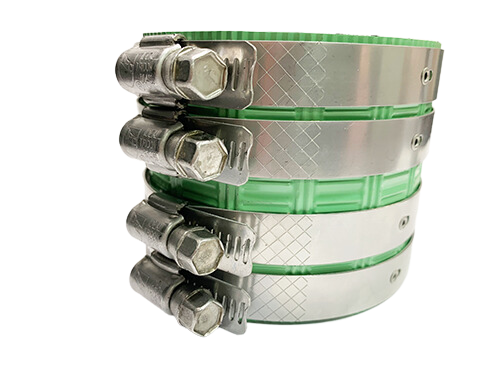

Ideal Tridon 6219H8G Super Heavy Duty Green Shield® No-Hub Couplings (3 inches)

Product Description

The Ideal Tridon 6219H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. These couplings feature a wider footprint on the joint and an increased number of high torque capacity clamps, providing structural rigidity and enhanced sealing pressure. They are fully certified to ASTM C1540, ASTM C564 and FM 1680 (Class 1 and 2), and carries IAPMO, and Canadian Std. Association certification.

• Quality line of Heavy Duty couplings
• Structural reinforcement
• Higher sealing pressures required

Product Highlights

Heavy-duty couplings with structural reinforcement and enhanced sealing for demanding applications. Certified to ASTM and FM standards.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6219H8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Brand: Ideal Tridon®
• MFR Part No: 6219H8G
• TSCO Part Number: 1277593
• Size: 3"
