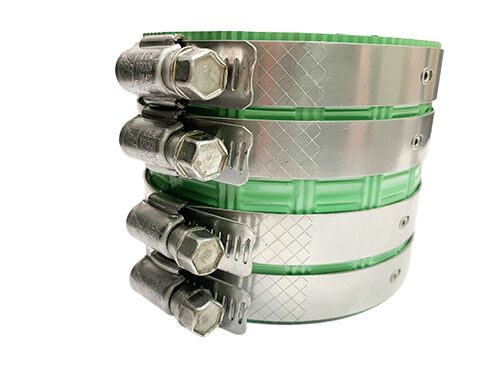

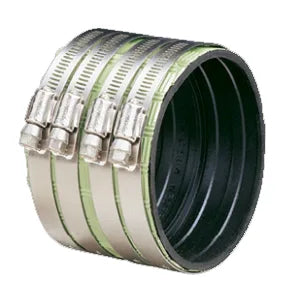

Ideal Tridon 6218H8G Super Heavy Duty Green Shield® No-Hub Couplings 2 in

Product Description

Ideal Tridon's 6218H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of Heavy Duty couplings where structural reinforcement and higher sealing pressures are required. They feature a wider footprint on the joint and an increased number of high torque capacity clamps, adding structural rigidity and enhanced sealing pressure.

• Quality line of Heavy Duty couplings
• Structural reinforcement
• Higher sealing pressures

Product Highlights

These couplings provide structural rigidity and enhanced sealing pressure, certified to ASTM C1540, ASTM C564 and FM 1680 (Class 1 and 2), and carries IAPMO, and Canadian Std. Association certification

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6218H8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Brand: Ideal Tridon®
• MFR Part No: 6218H8G
• Size: 2"
