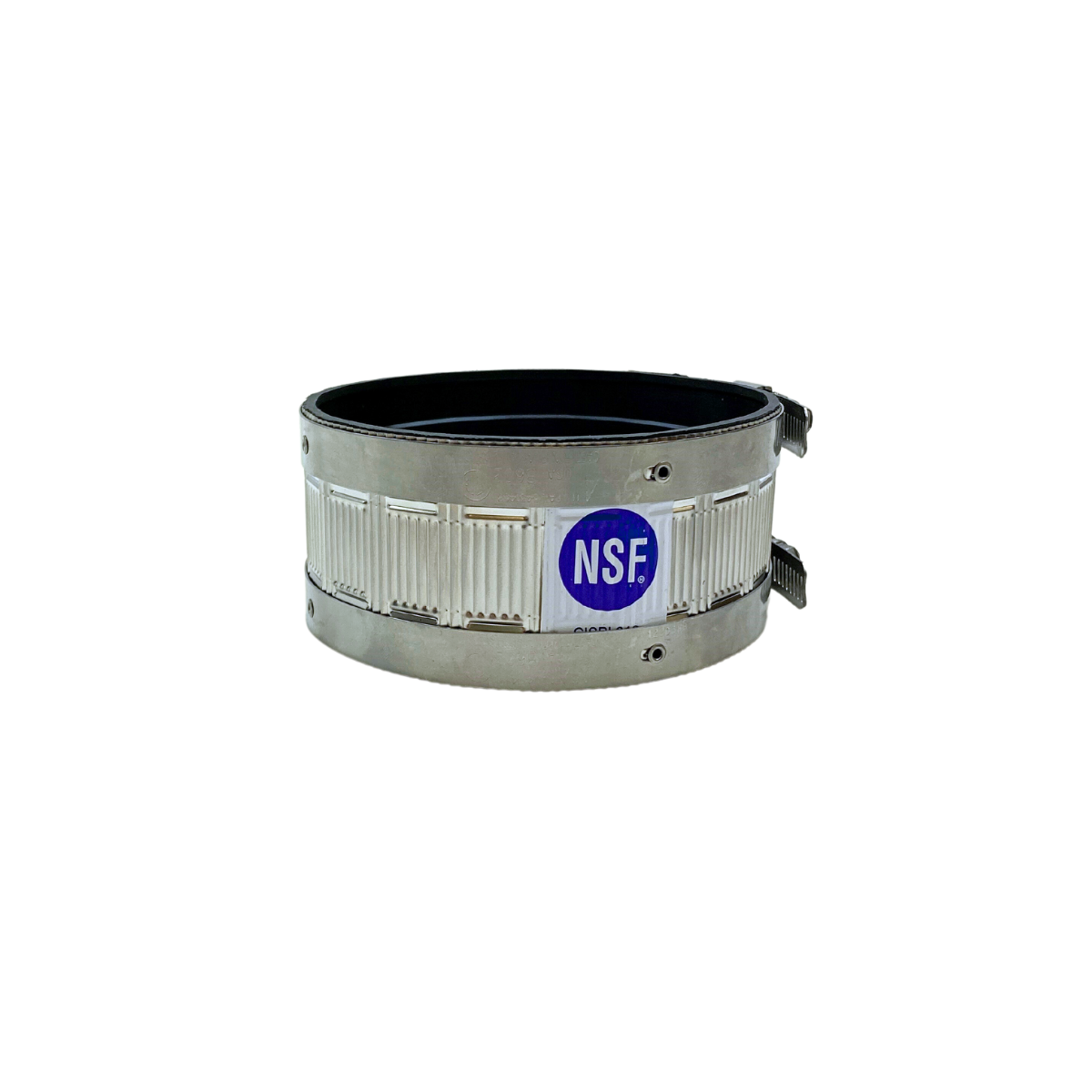

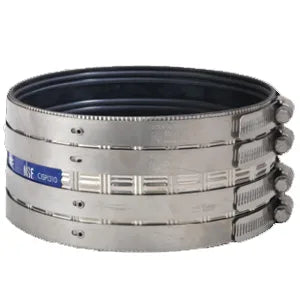

Ideal Tridon 6217M8G Standard Duty No-Hub Coupling

Product Description

The IDEAL TRIDON 6217M8G standard duty no-hub coupling is a high-quality, low-cost alternative for connecting no-hub cast iron pipe. Compliant with ASTM 564, CISPI 310, and ASTM C1277, this coupling also carries IAPMO, Canadian Std Association, and NSF certification. It installs at 60 in-lbs.

• Made in USA
• High quality
• Low cost alternative
• Compliant with ASTM 564, CISPI 310 and ASTM C1277

Product Highlights

The original no-hub coupling that has been in use since 1965. A fully certified line of standard duty couplings manufactured of domestically produced components.

Product Information

Standard Information

• Brand: IDEAL TRIDON
• Manufacturer Part Number: 6217M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
