Ideal Industries WT51-B WingTwist Wire Connector 500/Bag

Product Description

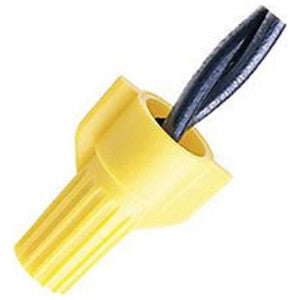

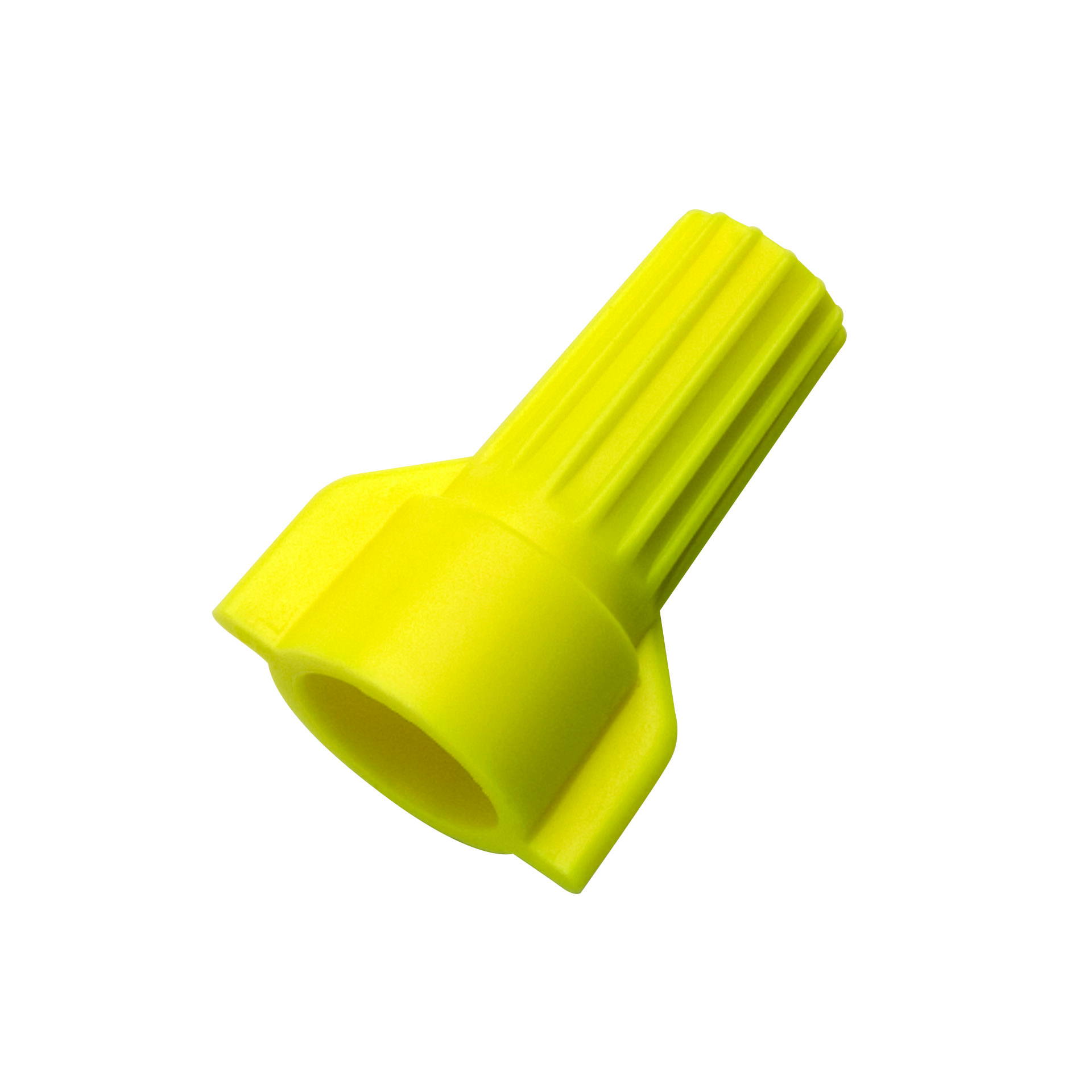

The IDEAL INDUSTRIES WT51-B WingTwist Wire Connector offers a combination of performance and value. Its fixed, square-wire spring provides a lasting grip, accommodating wire combinations from 18 to 10 AWG. The unique contoured wing design acts as a built-in wrench, delivering maximum torque with minimal effort.

• Fixed, square-wire spring for a lasting grip
• Contoured wing design provides maximum torque
• Flexible shell expands for smooth, progressive tightening

Product Highlights

The WingTwist wire connector features a contoured wing design, expanding shell, and secure wire spring for reliable electrical connections.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: WT51-B
• Country of Origin: United States of America

Technical Specifications

• UNSPSC Code: 43223300
• Application: For insulating or joining one or more conductors
• Color: Yellow
• Manufacturer Part Number: WT51-B
• Material: Polypropylene
• Series: WT51
• Shell Style: Contoured Winged/Twist On
• Specifications: 3/8 in Wire Strip, 1 to 6 Conductors, Min 18 to 2 AWG, Max 12 to 3 AWG Combination Size
• Standards/Approvals: RoHS Compliant|C22.2 No. 188|UL 94V-2 Flammability Rating|UL 486C Listed
• Temperature Rating: 221 deg F
• Voltage Rating: 600 VAC
• Conductor Size: 18-10 AWG, (2) 18 AWG-(3) 12 AWG
• Country Of Origin: United States of America
• Environmental Conditions: 105 C
• Standards: UL 486C Listed, CSA C22.2 No.188 Certified, RoHS Compliant
• Sub Brand: WingTwist
• Strip Length: 3/8 Inch
• Package Quantity: 500/Bag
• Item Name: Wire Connector
• Energy Star Flag: No
• RoHS Flag: Yes
• GTIN: 00781789611013
• UPC: 78178961101
• Manufacturer Name: Ideal Industries
• Applications: Insulating or Joining 1 or more conductors
• Number of Conductors: 1,6
• Standard: CSA C22.2 #188,RoHS,UL 486C Listed
• Voltage: 600 Volt
• Use With: Copper Wire
• Conductor Material: Copper
• Connector Type: Wing
• Insulation Material: Nylon
• Color Family: Yellow
