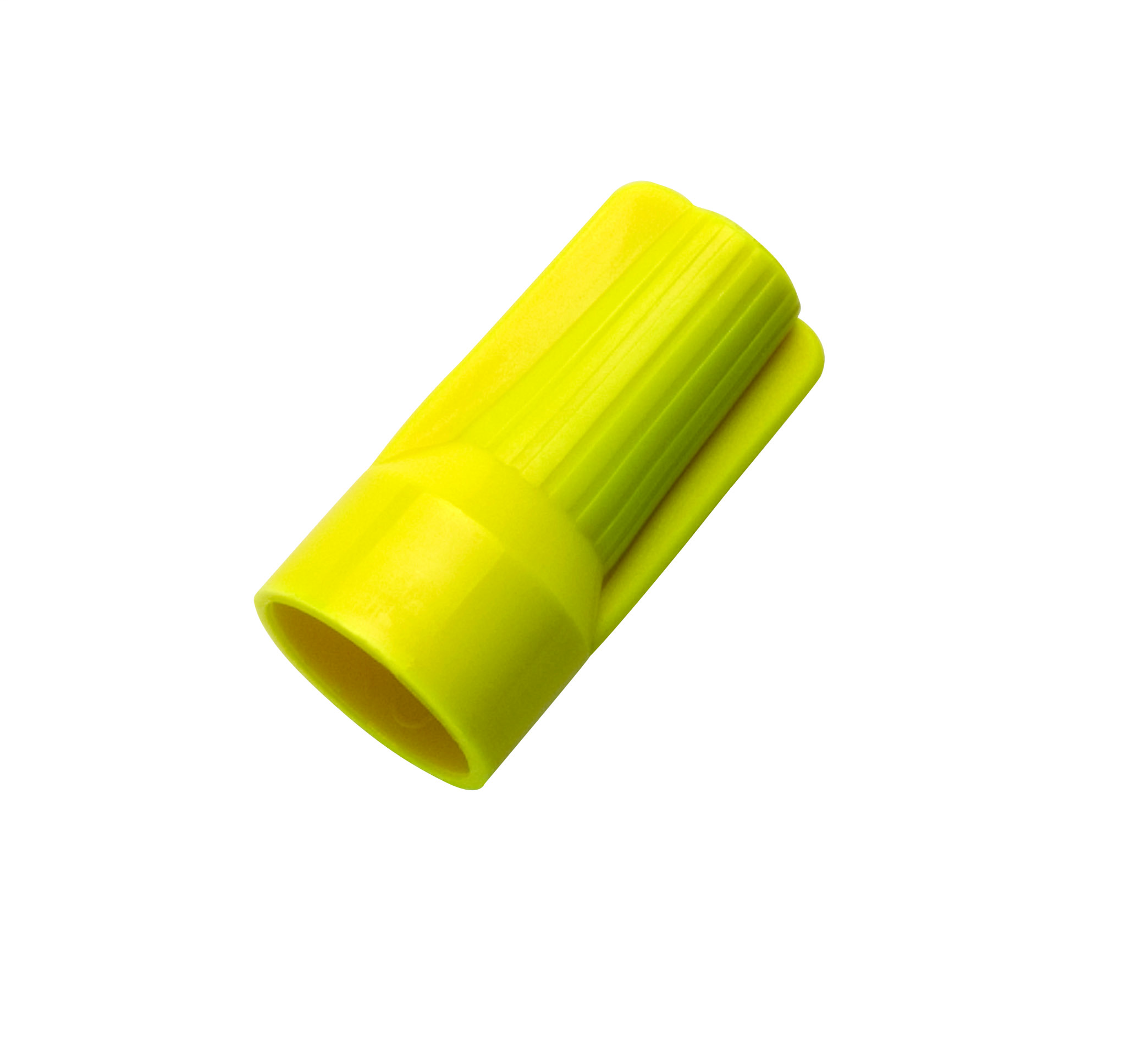

Ideal Industries B11 B-cap Wire Connector Yellow 100

Product Description

The IDEAL INDUSTRIES B11 is a low-profile, twist-on wire connector designed for residential and light commercial electrical work where space is at a premium. The compact body features classic tapered fins and an expanding interior spring that grip wire combinations securely while providing extra torque leverage. The flame-retardant shell resists environmental extremes, and the deep skirt delivers maximum dielectric protection to prevent flash-over and contain turned-back strands. This connector is removable and reusable on the same size or larger wire combinations, making it a practical choice for retrofit and repair work.

The B11 is suited for use in tight spaces such as shallow electrical boxes and retrofit installations where a standard-profile connector will not fit. It is intended for use by licensed electricians and qualified electrical trades on branch-circuit wiring in residential, commercial, and light industrial applications. The color-coded yellow housing helps identify wire gauge range on the job. This model is sold in a box of 100 connectors.

Key Features

• Low-profile, compact body fits shallow boxes and tight retrofit spaces
• Expanding interior spring provides a secure grip with extra leverage
• Flame-retardant shell withstands environmental extremes
• Deep skirt design maximizes dielectric protection and prevents flash-over
• Removable and reusable on same-size or larger wire combinations
• Color-coded yellow housing for quick gauge-range identification in the field

Compatibility

Designed as an OEM-style twist-on wire connector for use with copper conductors in standard residential and commercial electrical wiring applications. The B-CAP product line covers 20 gauge through 6 gauge wire across three color-coded models.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) and all applicable local codes. Always de-energize and lock out the circuit at the panel before making or breaking wire connections. Strip conductors to the appropriate length, twist clockwise until the connector is fully seated and no bare copper is exposed below the skirt, and verify a firm mechanical connection with a pull test on each wire.

Technical Specifications

• Wire Gauge Range: 20 gauge to 6 gauge (full B-CAP line)
• Shell Material: Flame-retardant thermoplastic
• Color: Yellow
• Quantity per Box: 100

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: B11
