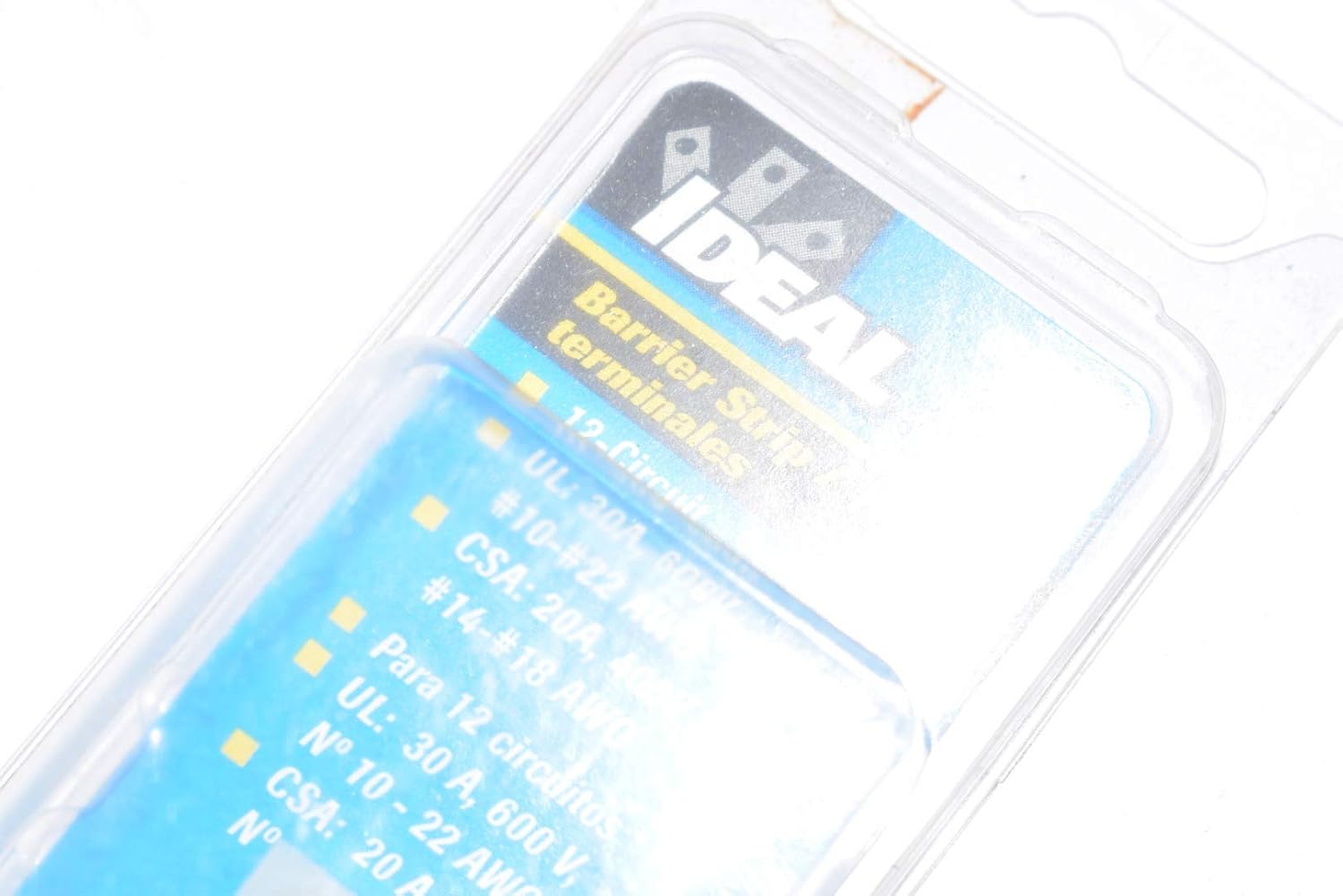

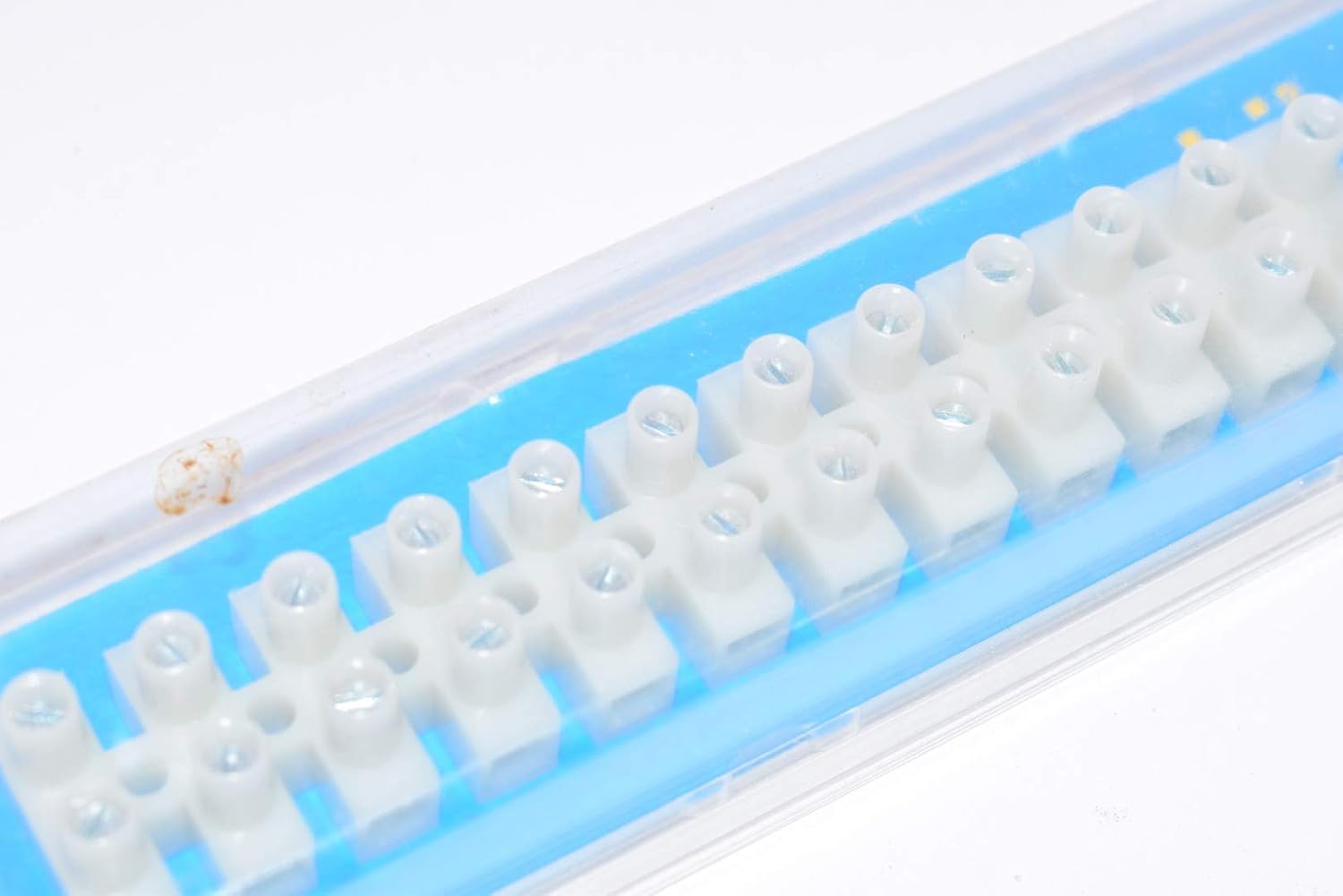

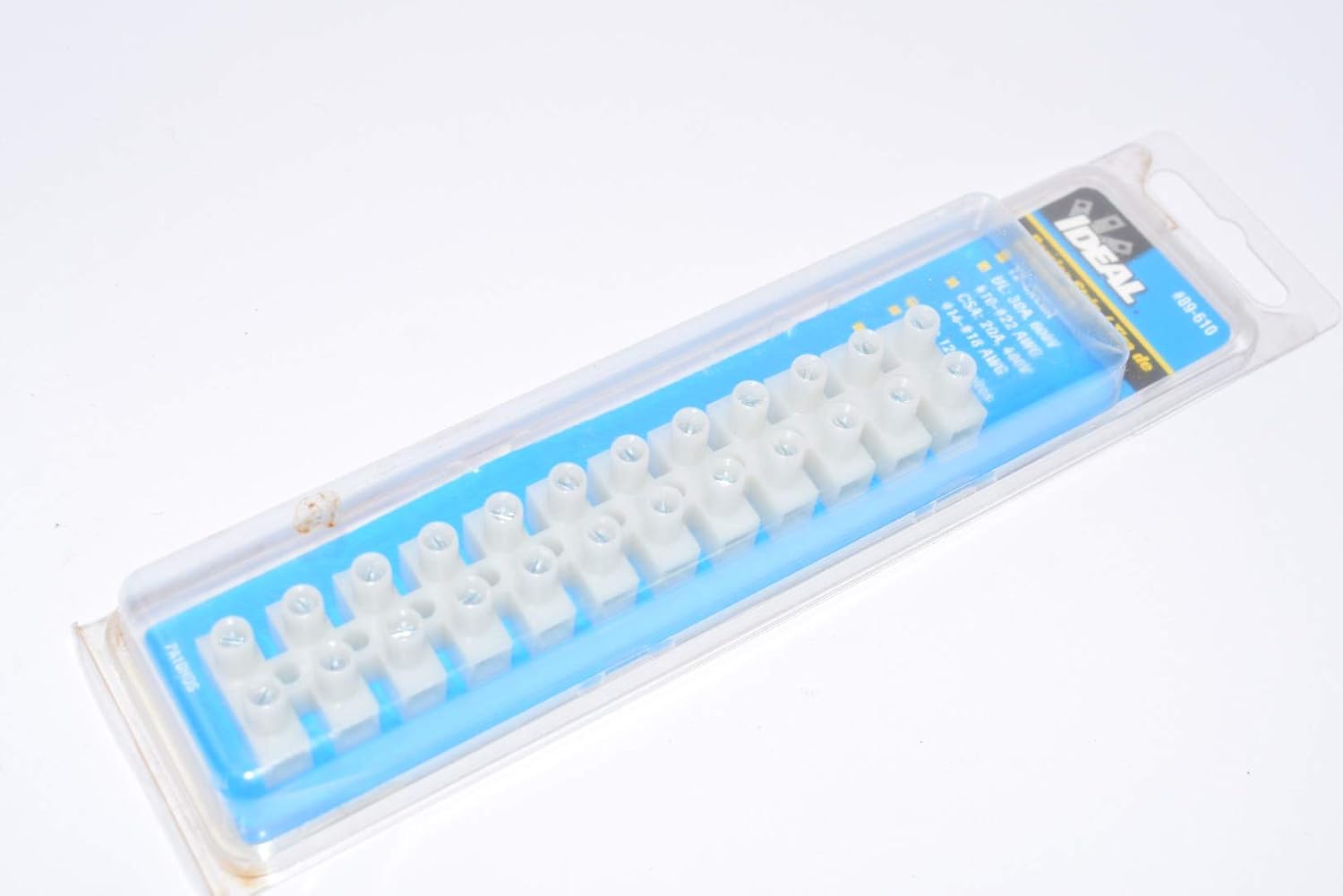

Ideal Industries 89-610 Barrier Strip, 12-Circuit, 30A/300V

Product Description

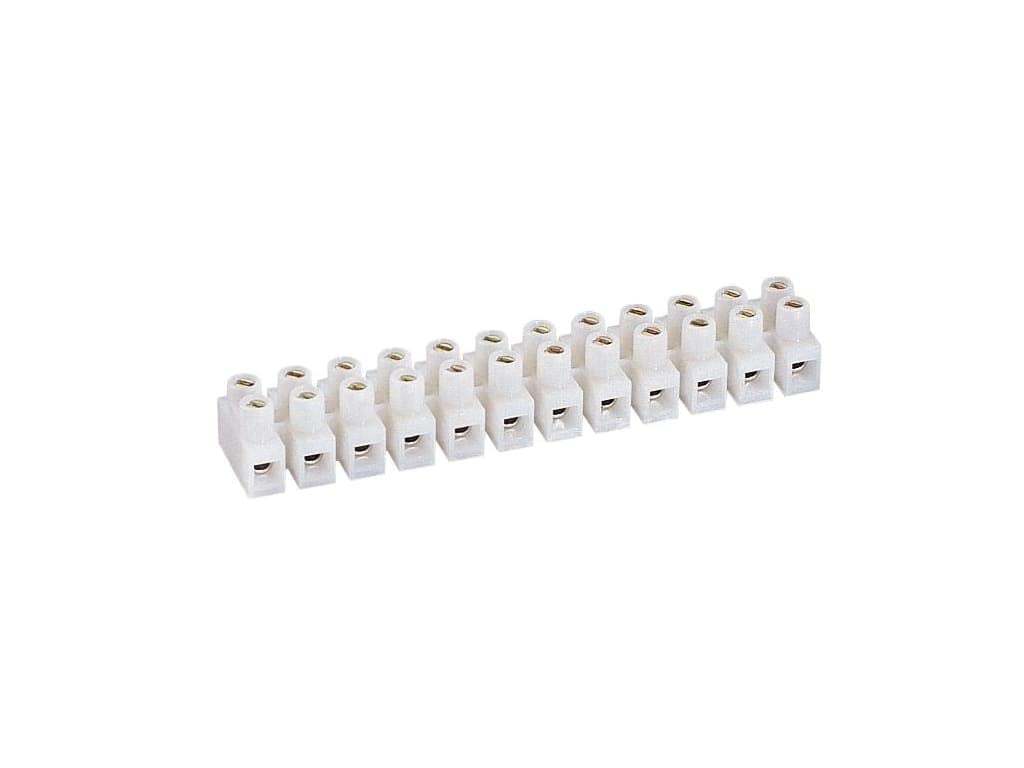

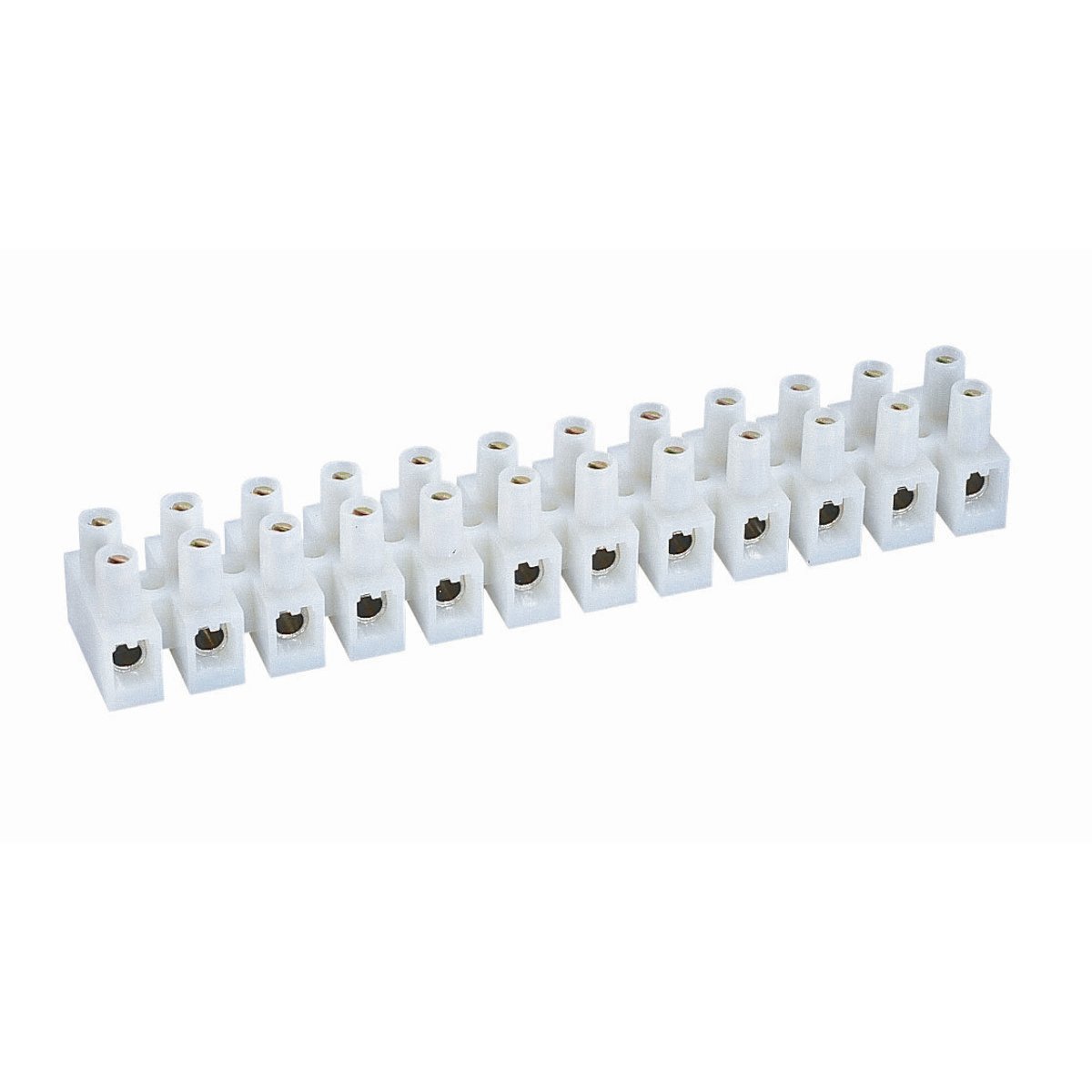

The IDEAL INDUSTRIES 89-610 barrier strip is designed for ruggedness, reliability, and ease of use. This 12-circuit wire block features a thermoplastic base and corrosion-resistant screws. It accepts wire sizes from 22 to 10 AWG and is rated for 30A/300V. The modular design allows cutting into sections or stacking end-to-end.

• Modular 12-circuit design can be cut into smaller sections or stacked end-to-end
• Recessed screws and tubular contacts provide added safety and help prevent short circuits
• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

Product Highlights

This barrier strip features a rugged nylon construction rated to UL 94V2 and an operating temperature up to 105 degrees C.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 89-610
• Country of Origin: TW

Technical Specifications

• Brand Name: IDEAL Industries
• Manufacturer Part Number: 89-610
• Product Type: Wire Block
• Total Number of Ports: 12
• Certifications & Standards: UL94V-2
• Material: Nylon
• Connector Type: Clamp
• Current Rating: 30 Amps
• Wire Size: 22-10 AWG
• Torque Rating: 4.4 in-lb
• Rated Temperature: 221 deg F
• Voltage: 300/400 VAC
• Number of Terminals: 12
• Center Spacing: 0.394 in
• Connection Type: Recessed Screws/Tubular Contacts
• Mounting Type: Direct
• Number of Poles: 12 Pole
• Temperature Rating: 105 degrees C
• Amperage Rating: 30 Amp
• Voltage Rating: 300/400 Volt
• Standards: UL Listed, CSA Certified, RoHS Compliant
• Item Name: Barrier Strip
• Environmental Conditions: V2 Flammability Rated Per UL94
• Conductor Size: 22-10 AWG
• UL Voltage: 300 VAC
• Wire Size Range: 22-10 AWG
• CSA Voltage: 400 VAC
• Approvals: CSA, UR
• Net Weight: 0.133 lbs
• Gross Weight: 0.133 lbs
