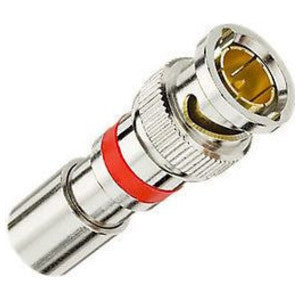

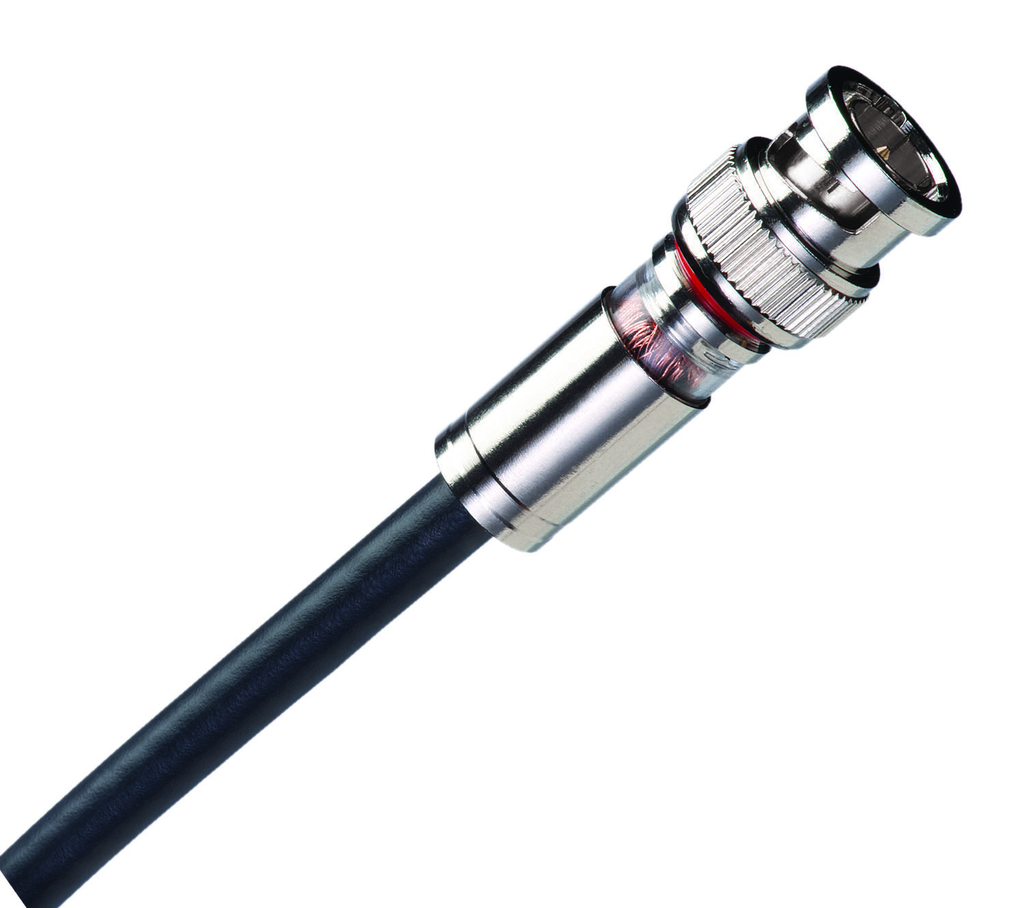

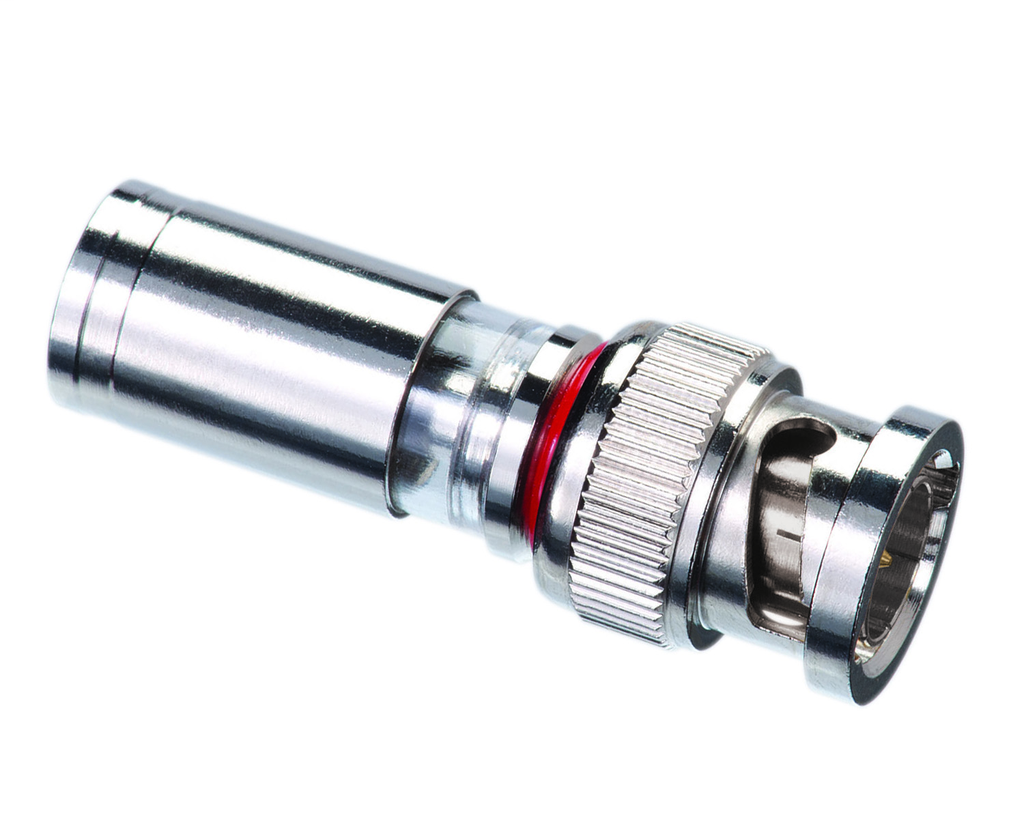

Ideal Industries 89-5047 InSite RG59 BNC Compression Connector 35/Jar

Product Description

The IDEAL INDUSTRIES 89-5047 InSite RG59 BNC Compression Connector simplifies the installation of one-piece compression BNC connectors. Featuring patented InSITE Technology, this connector provides a higher performance connection for CCTV to HD Video applications. The InSITE window allows verification of proper cable insertion before compression, ensuring a confident connection every time.

• Accepts RG-59 coax
• Nickel-plated, brass-construction for superior corrosion resistance
• Moisture-inhibiting design

Product Highlights

This BNC compression connector features InSITE technology for easy cable insertion verification and reliable connections for CCTV and HD Video applications.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 89-5047
• Country of Origin: China

Technical Specifications

• Type: BNC
• Brand: Ideal Industries
• Finish: Plated
• Material: Brass
• Impedance: 75 Ohm
• Cable Type: RG-59 Coaxial Cable
• Product UPC: 78325068940
• 12-Digit UPC: 783250689408
• Applications: For CCTV System Installations/Integrations And General Purpose Applications on RG 59 Cable
• Application: For CCTV system installations/integrations, general purpose applications on RG-59 cable and indoor/outdoor applications
• Dielectric Diameter: 0.142 TO 0.148 INCH
• Bandwidth: 3 GHZ
• Coupling Style: BNC
• Solid Center Conductor Size: 18 TO 23 AWG
• Contact Material: GOLD PLATED
• Cable Insulation Outer Diameter: 0.23 TO 0.25 INCH
• Body Material: NICKEL PLATED BRASS
• Configuration: STRAIGHT
• Data Cable Type: RG59
• Termination Method: Compression
• Quantity: Jar of 35
• Wire Type: Solid
• Feed-Thru: No
• Standards/Approvals: RoHS Compliant
