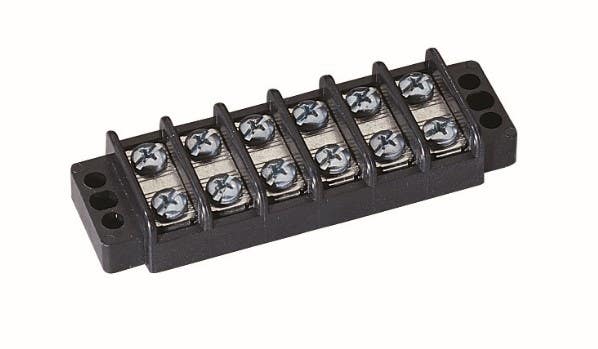

Ideal Industries 89-306 Terminal Strip, 6-Pole, 22-14 AWG

Product Description

The IDEAL INDUSTRIES 89-306 terminal strip is designed for ruggedness, reliability, and ease of use. It features a thermoplastic base and corrosion-resistant screws and hardware for an extended service life. This 6-pole terminal strip accepts 22-14 AWG wire. It is suitable for various circuit configurations and electrical ratings.

• .375" (9.52mm) centers spacing
• #6-32 Philslot, zinc-plated steel terminal screws
• Rugged polyester thermoplastic base (UL Rated 94V-0)

Product Highlights

The IDEAL INDUSTRIES 89-306 terminal strip offers a reliable wire termination solution with durable construction and versatile application.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 89-306

Technical Specifications

• Color: Black
• Material: Nickle-Plate Steel,Polyester,Thermoplastic
• Brand Name: IDEAL
• Manufacturer: IDEAL Industries, Inc
• Product Line: Wire Termination
• Product Name: Terminal Strip, 6-Pole, 22-14 AWG
• Product Type: Wire Block
• Product Series: Terminal Strips
• ADI Part Number: IL-89306
• Manufacturer Part Number: 89-306
• Spacing: 0.375 IN
• Voltage: 150 Volt
• Amperage: 20 Amp
• Wire Size: 22-14 AWG
• Conductor Size: 22-14 AWG
• Standard: CSA,RoHS,UL Listed
• Termination Method: Screw
• Number of Poles: 6
• Maximum Wire Gauge: 14 AWG
• Minimum Wire Gauge: 22 AWG
• Wire Type: Solid, Stranded
• Operating Temperature: 260 to -40°F (130 to -40°C)
• UPC Code: 783250058006
• SKU: 89-306
