Product Description

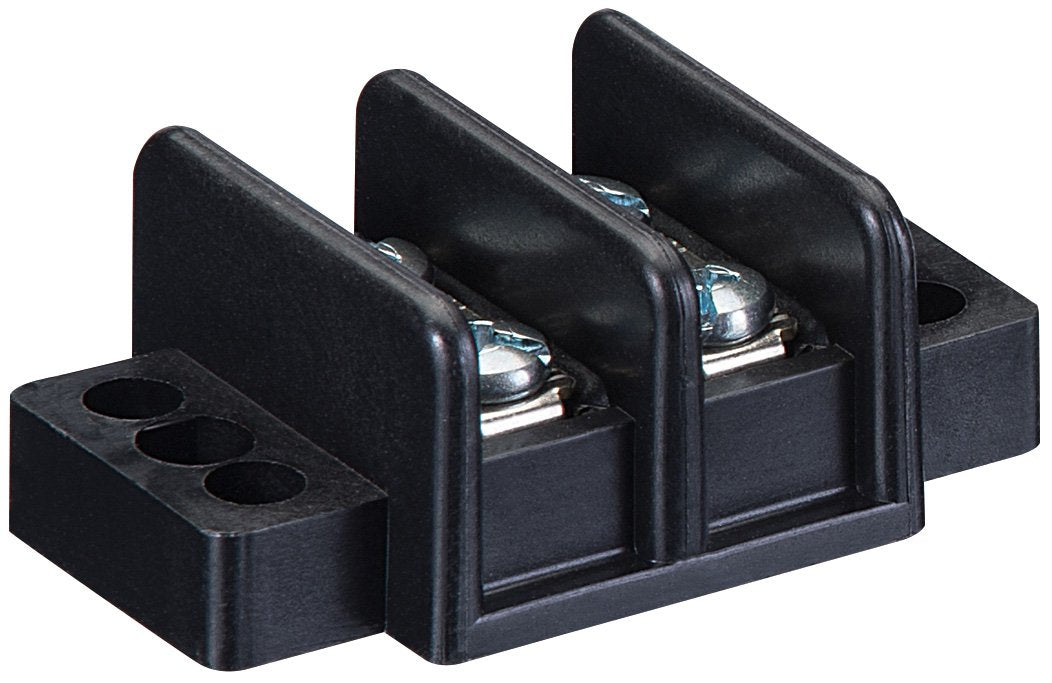

The Ideal Industries 89-210 terminal strip is a 1-piece heavy-duty model designed for reliable connections. This terminal strip supports up to 600 VAC and 30 A of current. It is compatible with wire sizes from twenty-two to ten AWG. The dimensions of this terminal strip are six point six two inches in length, one point three three inches in width, and zero point eight one inches in height. The robust design ensures durability and ease of use on any job site.
- Compatible with wire sizes from 22 to 10 AWG
- Mounting type: Surface
- UL Listed and CSA Certified
Product Highlights
The 89-210 terminal strip offers corrosion-resistant screws and a rugged thermoplastic base, providing extended service life and various installation options.
Product Information
Standard Information
-
Brand: Ideal Industries
-
MPN: 89-210
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 30 A
-
Wire Size: 22 to 10 AWG
-
Center Spacing: 0.562 inches
-
Screw Size: #10
-
Torque Rating: 16 in-lb
-
Temperature Rating: -40 to 260 degrees F
-
Number of Terminals: 10
-
Material: Polyester Thermoplastic/Steel
