Ideal Industries 85-178 Tlc Rg6 Quad Toolless F (50-pack)

Product Description

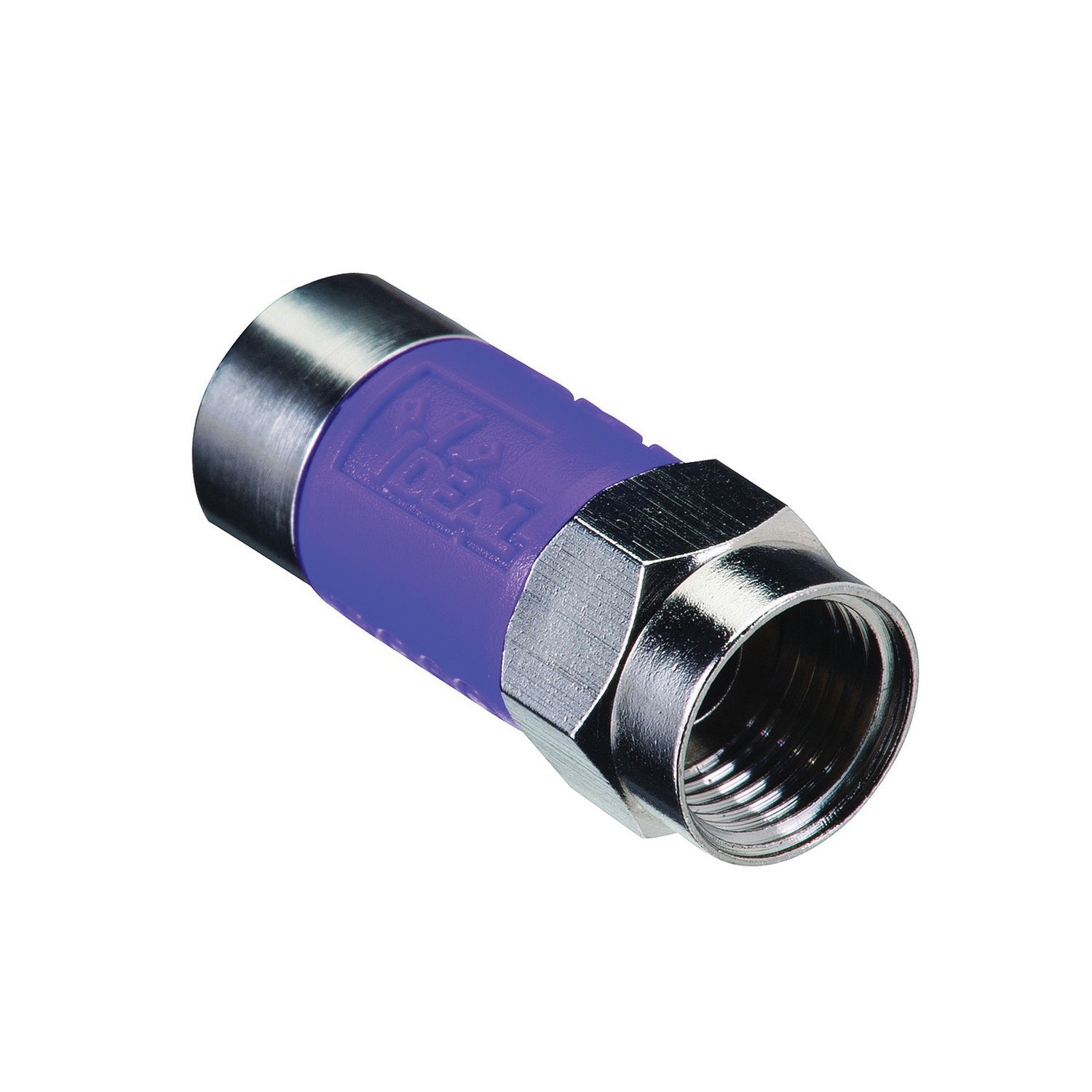

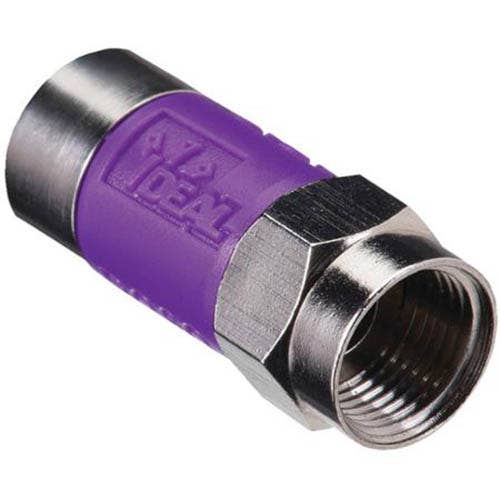

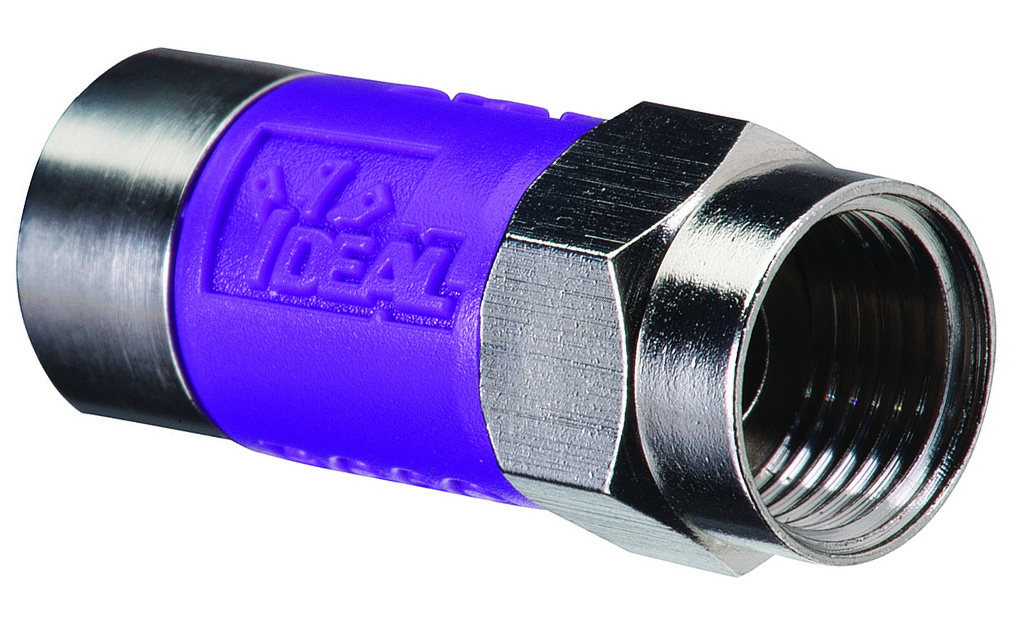

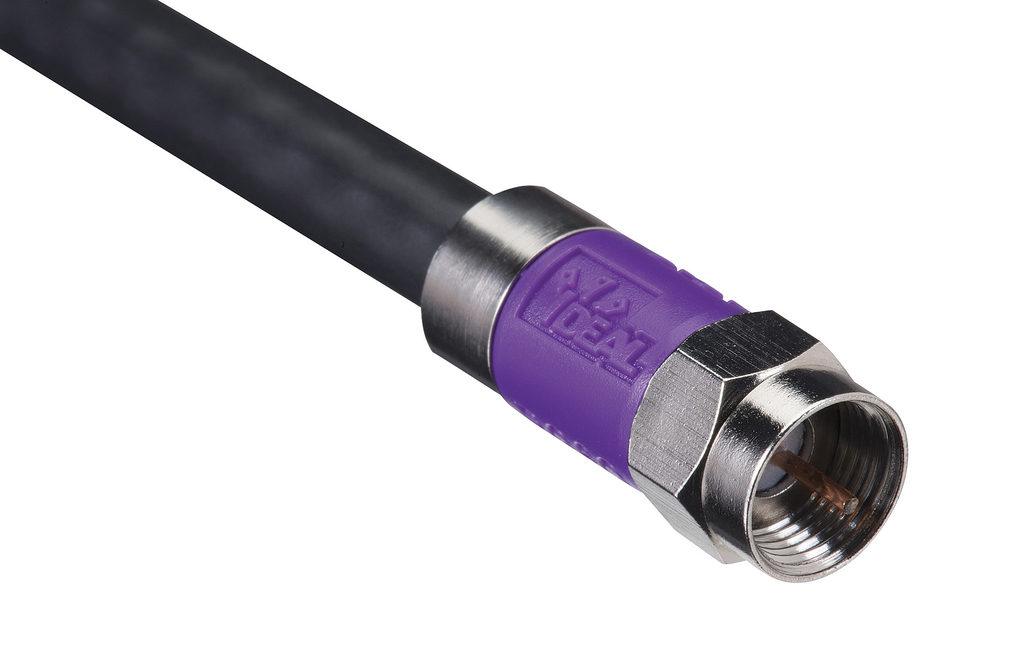

IDEAL INDUSTRIES 85-178 TLC RG6 Quad F compression connector is a solution for installing compression connectors. Designed to save time, labor, and cost, no compression tool is required to terminate these connectors. The TLC connector uses the industry-standard 1/4” x 1/4” cable preparation and features a sliding, locking post design to secure the cable. These connectors are designed for indoor applications from 5MHz to 3GHz, including CATV and satellite.

• Tool-Less Compression connector
• Accepts RG-6 Quad coax cables
• 360° cable retention

Product Highlights

The TLC design means no compression tool is required to terminate the connector. Designed for use in cable and satellite TV installations.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 85-178
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 43223300
• Brand: Ideal Industries
• Manufacturer: Ideal Industries
• Selling UOM: ea
• GTIN: 00783250851782
• Energy Star Flag: No
• RoHS Flag: Yes
• Manufacturer Part Number: 85-178
• Manufacturer Name: Ideal Industries
• UPC: 78325085178
• Impedance: 75 Ohm
• Item Name: Compression Connector
• Frequency Rating: 0 Mega-Hz - 3 Giga-Hz
• Cable Type: RG-6 Quad Shield
• Cable Size: 0.175 - 0.183 Inch Dielectric Dia, 0.275 - 0.305 Inch Jacket Dia
• Return Loss: >30 DB Upto 3 Giga-Hz
• Material: Brass
• Sub Brand: TLC™
• Connector Type: F-Type
• Type: Tool Less
• Country Of Origin: China
• Data Cable Type: RG6 Quad
• Termination Method: Push-On
• Quantity: Pack of 50
• Package Quantity: Card of 50
• Wire Type: Solid
• Feed-Thru: No
• Bandwidth: Up to 3 GHZ
• Series: TLC
• Model: 6QFTLC
• Application: Indoor
