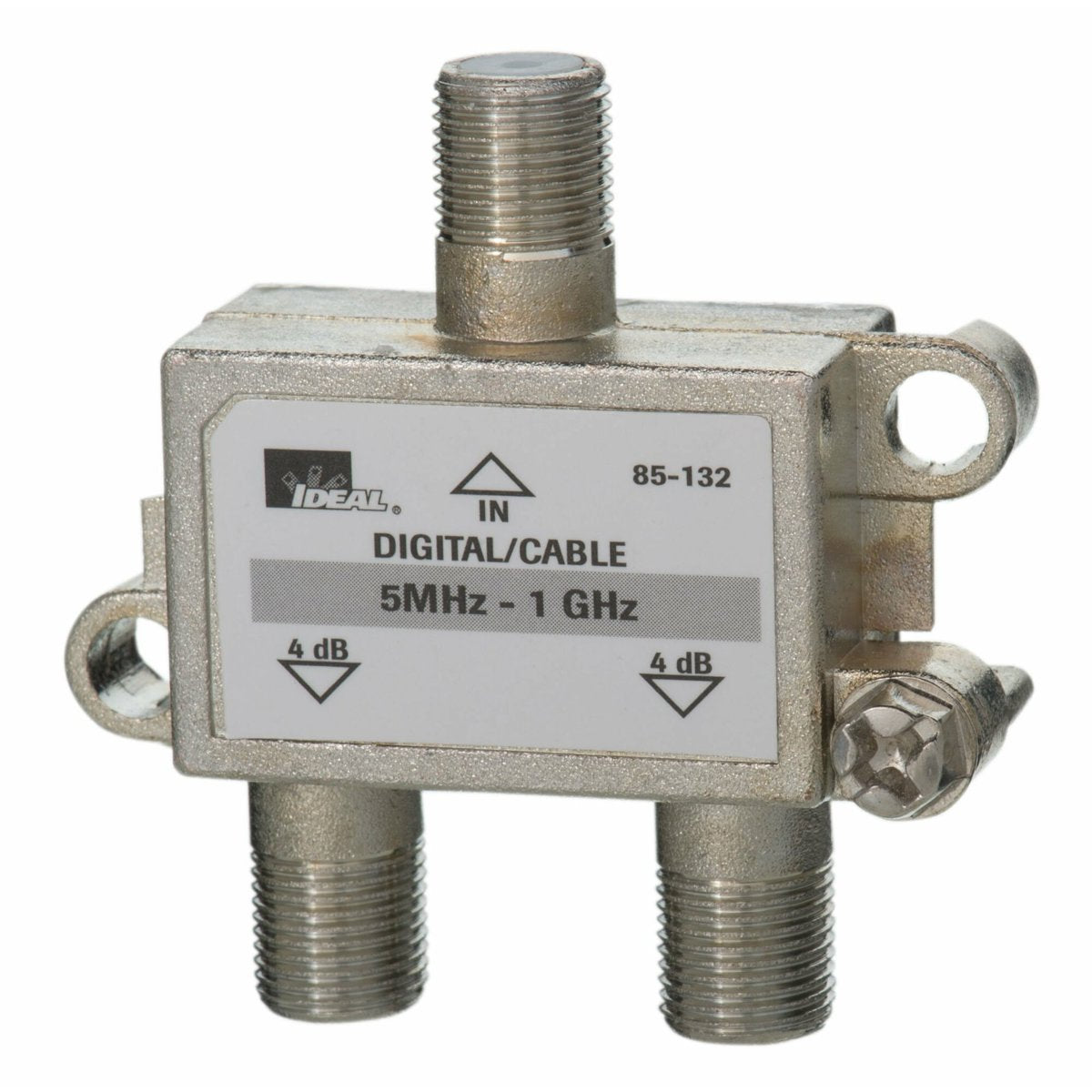

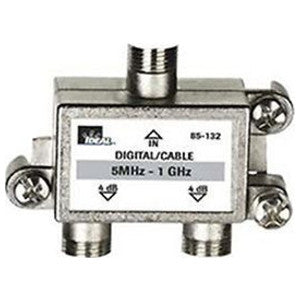

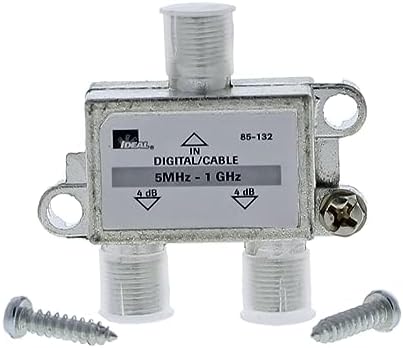

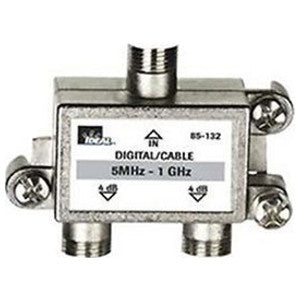

Ideal Industries 85-132 2-way 5mhz-1ghz splitter

Product Description

The Ideal Industries 85-132 is a high-performance 2-way digital cable splitter designed for applications operating within the 5 MHz to 1 GHz frequency range. It effectively splits a single coaxial line into two balanced output signals, suitable for Digital/HD Cable TV, Broadcast TV, and CCTV systems. Featuring an internal printed circuit board and a nickel-plated zinc die-cast housing, this splitter ensures improved electrical performance and signal integrity for 75 Ohm coaxial cable systems.

• Splits one input into two balanced output signals.
• Operates within a 5 MHz to 1 GHz bandwidth for various applications.
• Features nickel-plated zinc construction with an internal PCB for enhanced performance.

Product Highlights

Ensures a stronger, cleaner signal with improved EMI/RFI shielding for reliable coaxial splitting.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 85-132
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 52161556
• Type: 2-Way, High Performance, Female, Twist-On
• Impedance: 75 Ohm
• Cable Type: Coaxial
• Applications: Use in Digital/HD Cable TV, Broadcast (over the Air) TV, CCTV and General Purpose Coaxial Splitting Applications
• Connection Type: F-Bus
• ECCN: EAR99
• Country of Origin: China
• Frequency Range: 5 MHz - 1 GHz
• UPC: 783251000000.0
• Data Cable Type: RG6, RG59, RG11
• Feed-Thru: No
• Primary Type: RF Splitter
• Series: 85 Series
• EMI/RFI Shielding Effectiveness: -120dB
• Insertion Loss: 3.5dB to 4.0dB over rated frequency range
• Shielded: Shielded
