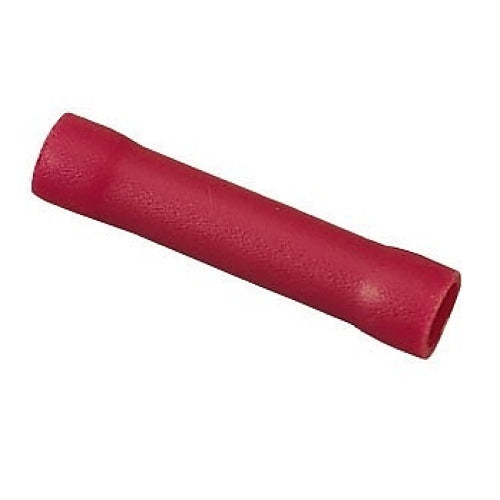

Ideal Industries 84-9281 Vinyl-Insulated Butt Splice 22-18AWG 1000 Pack

Product Description

The IDEAL INDUSTRIES 84-9281 vinyl-insulated butt splice offers a reliable solution for electrical connections. Designed for 22-18 AWG wiring, these splices feature butted-seam construction to prevent splitting and internal barrel serrations for a secure grip. Tin-plated brass construction ensures corrosion resistance. Color-coded for easy identification and supplied in a pack of 1000.

• Butted seam construction prevents splitting under maximum pressure.
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.
• Tin-plated brass construction for corrosion resistance.

Product Highlights

Vinyl-insulated butt splices ensure secure crimp terminations for 22 to 18 AWG wiring. They feature color-coded PVC insulation and withstand up to 600V and 75°C.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 84-9281
• Country of Origin: Country of origin is subject to change.

Technical Specifications

• Product Line: Wire Termination
• Product Series: Electrical Crimp Terminals
• ADI Part Number: IL-849281
• Packaged Quantity: 1000
• Manufacturer Part Number: 84-9281
• Features: Brazed Seam, Butted Seam, Corrosion Resistant
• Size: 22 To 18 AWG
• Type: Vinyl Butt
• Brand: Ideal Industries
• Voltage: 600 Volt
• Standard: CUL Listed, RoHS
• Temperature Rating: 75 C
• Conductor Size: 22 to 18 AWG
• Length: 0.986 in
• Material: Brass
• Finish: Tin Plated
• Barrel Size: 0.067 in ID
• Voltage Rating: 600 VAC
• Termination Method: Crimp
• Number of Ports: 2
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 167°F (75°C)
• Maximum Wire Gauge: 22 AWG
• Minimum Wire Gauge: 18 AWG
• Terminal Type: Butt
• Wire Type: Solid, Stranded
• Insulated: Yes
• Country of Origin: TWN
• Special Features: Butted seam-construction prevents splitting under maximum pressure Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance Shouldered barrel insulation quickly positions terminal for proper crimping Tin plated brass construction for corrosion resistance
