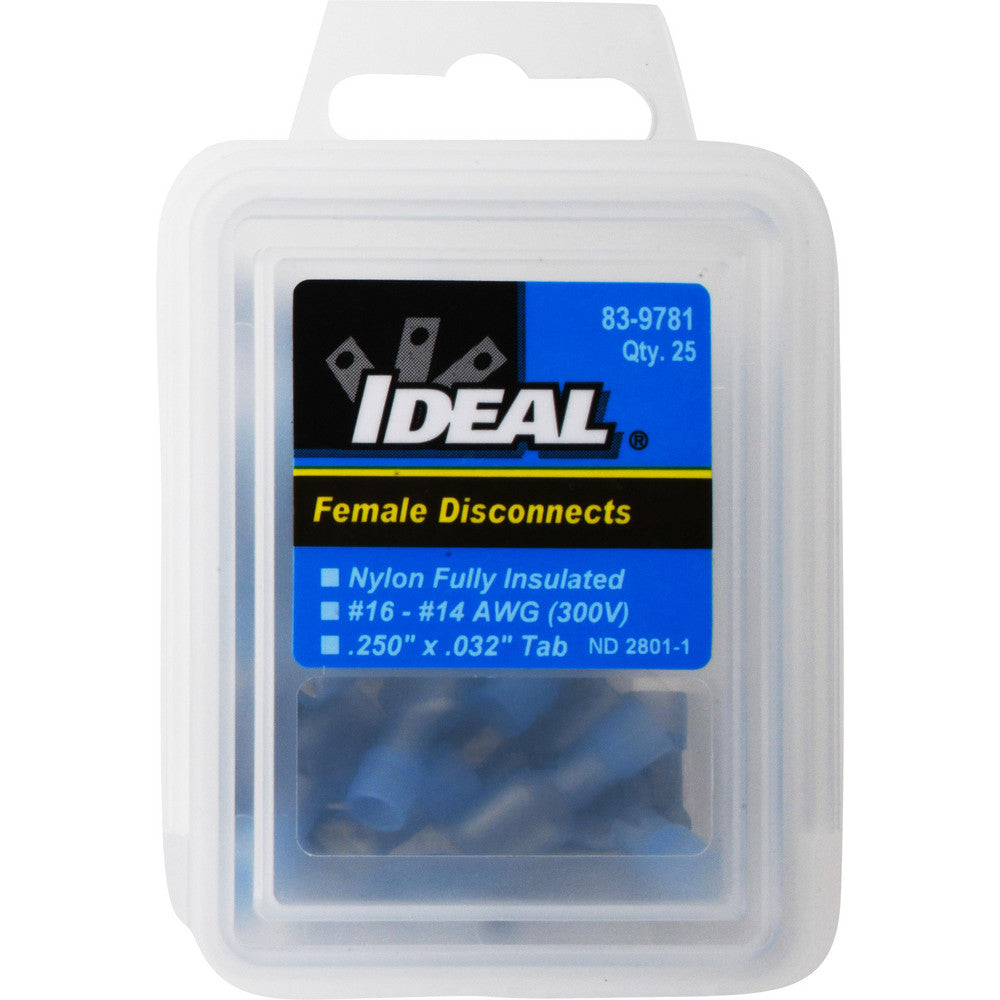

Ideal Industries 83-9781 Nylon Fully-Insulated Female Disconnect, 16-14 AWG, Box of 25

Product Description

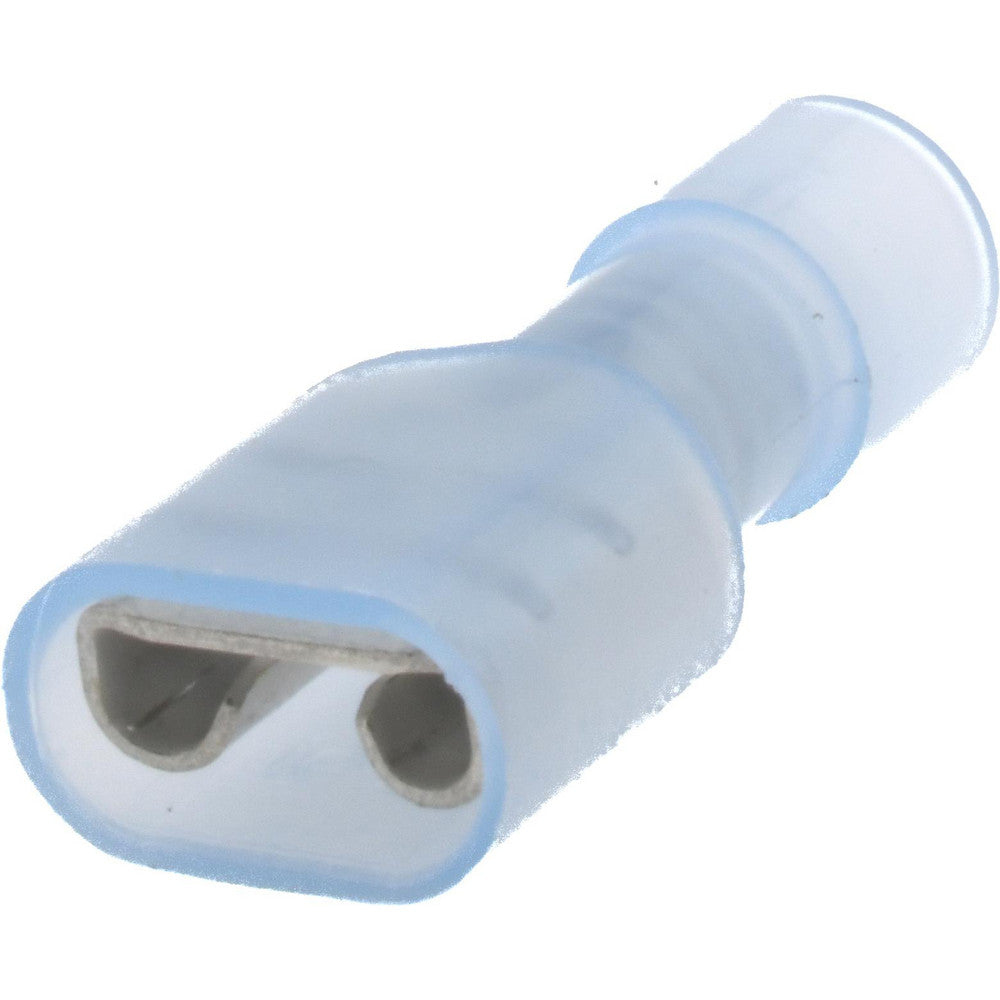

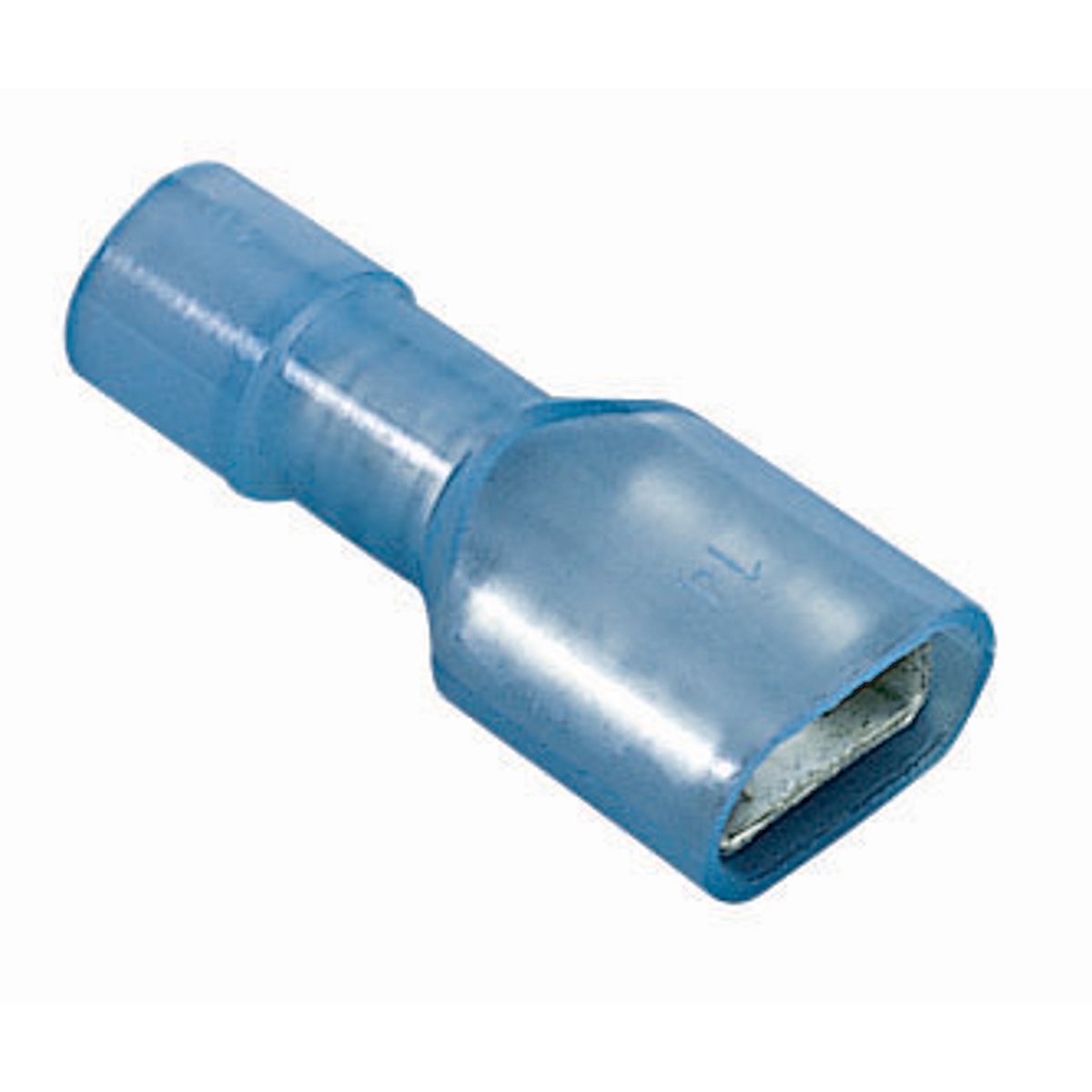

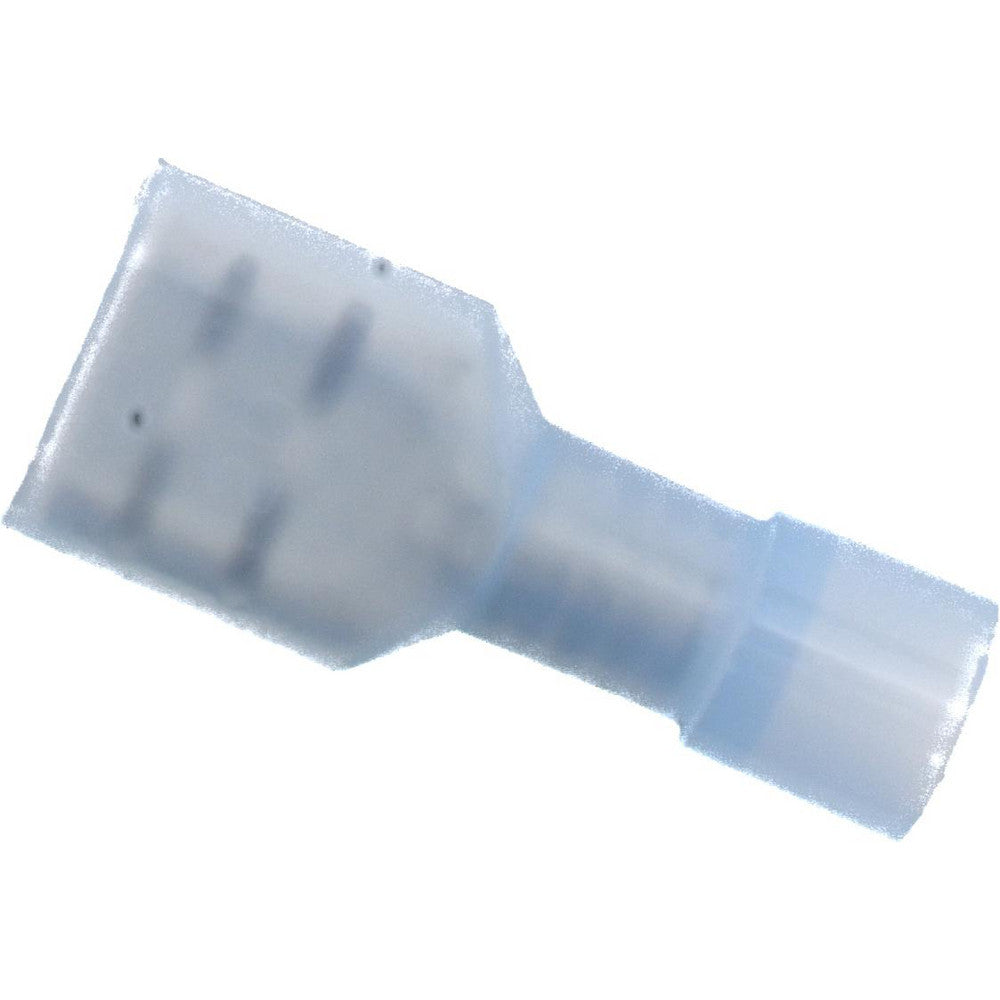

The IDEAL INDUSTRIES 83-9781 nylon fully-insulated female disconnect is designed for electrical systems. These crimp terminals offer a solution for various wire ranges. The disconnect features butted-seam construction to prevent splitting under maximum pressure and tin-plated brass construction for corrosion resistance. It has a shouldered barrel insulation for proper crimping.

• Butted seam construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL Industries disconnect offers secure wire termination with corrosion resistance and easy crimping.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-9781
• Country of Origin: Taiwan

Technical Specifications

• Manufacturer Part Number: 83-9781
• Brand Name: IDEAL
• Product Line: Wire Termination
• Product Type: Power Connector
• Connector Type: Crimp Female
• Product Series: Electrical Crimp Terminals
• ADI Part Number: IL-839781
• Connector Details: Crimp - Female
• Packaged Quantity: 25
• Width: 0.3"
• Length: 0.9"
• Voltage: 300 Volt
• Wire Size: 16-14 AWG
• Material: Brass, Nylon
• Finish: Tin Plated
• TC Connection: Female
• Conductor Size: 16 to 14 AWG
• Insulation Diameter: 0.185 IN
• Tab Size: 0.250 IN X 032 IN
• Temperature Rating: 105 DEG C
• Insulation Material: Nylon
• Tab Width (Decimal Inch): 1/4
• Standards: UL Listed 774A; RoHS Compliant; cUL Listed
• Insulated: Fully Insulated
• Voltage Rating: 300 VAC
• Type: Fully Insulated
• Manufacturer: IDEAL Industries, Inc
• Country of Origin: TW
• Features: Brazed Seam, Butted Seam
