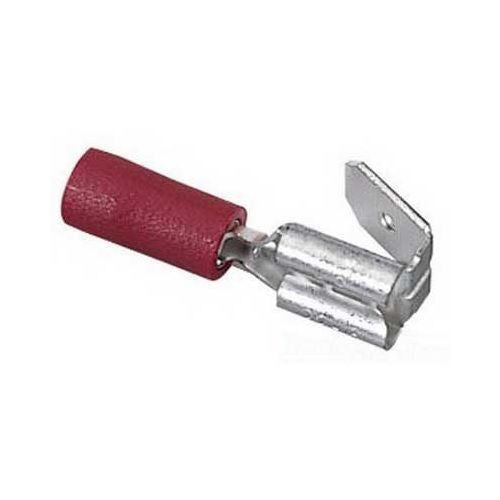

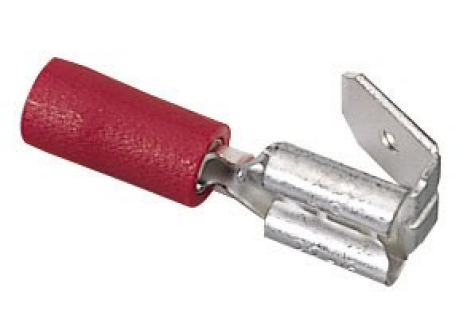

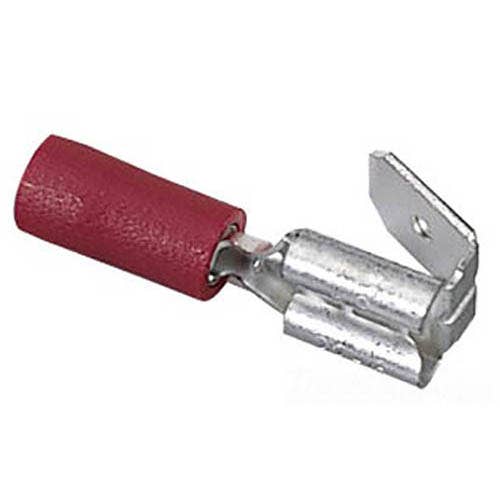

Ideal Industries 83-9611 Vinyl Insul Multi-Stack Disconn 22-18AWG (25/Box)

Product Description

IDEAL INDUSTRIES 83-9611 vinyl insulated multi-stack disconnects are designed for 22-18 AWG wires and come in boxes of 25. These crimp terminals and disconnects are designed for durability and ease of use. They feature butted seam-construction that prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Shouldered barrel insulation quickly positions terminal for proper crimping

Product Highlights

Multi-stack disconnects made of tin-plated brass for corrosion resistance. Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-9611
• Country of Origin: Taiwan

Technical Specifications

• ECCN: EAR99
• Country of Origin: Taiwan
• UNSPSC: 39121447
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 300V
• Maximum Temperature (C): 75�C
• Maximum Wire Gauge: 22 AWG
• Minimum Wire Gauge: 18 AWG
• Number of Poles: 2
• Stud Size: 1/4"
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Insulated: Yes
• Maximum Temperature (F): 167�F (75�C)
• Material: Brass
• Finish: Tin Plated
• Voltage Rating: 300 VAC
• Standard & Approvals: cUL Listed, RoHS Compliant
• Maximum Insulation Dia: 0.15 in
• Tab Size: 0.25 in x 0.032 in
• Length: 0.886 in
