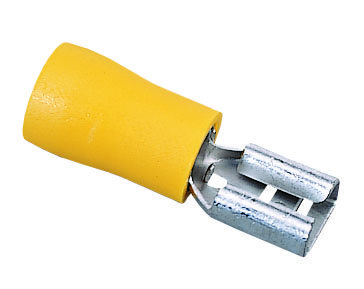

Ideal Industries 83-9601 Vinyl Insulated Female Disconnect Terminal #12 to #10 A

Product Description

The Ideal Industries 83-9601 Vinyl Insulated Female Disconnect Terminal provides a reliable connection for electrical applications. This terminal accommodates wire sizes from twelve to ten AWG and is designed with funnel entry for ease of use.

• Butted seam construction helps to prevent splitting under pressure.
• Internal barrel serrations provide a firm grip on wires to minimize pull-out.
• Tin-plated brass material ensures resistance against corrosion.

Product Highlights

This female disconnect terminal is essential for secure connections in various electrical systems.

Product Information

Standard Information

• Brand: Ideal Industries
• MPN: 83-9601

Technical Specifications

• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Temperature Rating: 75 Deg C
• Standard Package: 25 per Carton
• Approval: UL 774A, CUL
• Material: Brass
• Connection Type: Female
• Voltage: 300 Volt
• Insulation Material: Vinyl
• Terminal Type: Crimp
• Voltage Rating: 300 VAC
• Barrel Type: Shouldered
• Insulated: Insulated
