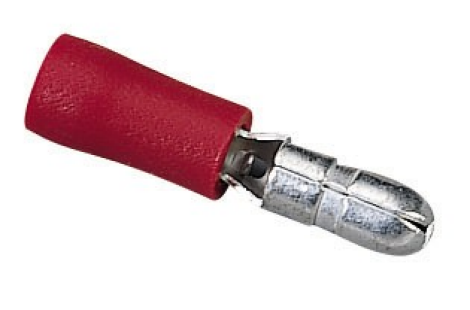

Ideal Industries 83-8001 Vinyl Insulated Bullet Disconnect, 22-18AWG (300V), 25Pk

Product Description

The Ideal Industries 83-8001 crimp terminals, disconnects, and splices offer a solution for electrical systems. These vinyl insulated bullet disconnects are color-coded for easy identification. They are made for wire range of 22 to 18 AWG. All insulated terminals come in durable plastic packaging for easy storage.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

These vinyl insulated bullet disconnects feature shouldered barrel insulation for proper crimping and expanded insulation entry for additional support.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-8001
• Country of Origin: Taiwan

Technical Specifications

• Type: Vinyl Insulated
• Brand: IDEAL Electrical
• Voltage: 300 Volt
• Standard: C/US UL Listed,RoHS
• Wire Size: 22-18 AWG
• Conductor Size: 22-18 AWG
• Bullet Diameter: 0.157 in
• Color: Red
• Finish: Tin Plated
• Manufacturer Part Number: 83-8001
• Material: Brass
• Overall Length: 0.846 in
• Specifications: 0.15 in Dia Max Insulation, 0.335 in L Bullet
• Standards/Approvals: RoHS Compliant|774A C/US UL Listed
• Temperature Rating: 75 deg C
• Voltage Rating: 300 VAC
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 300V
• Maximum Temperature: 167°F (75°C)
• Maximum Wire Gauge: 22 AWG
• Minimum Wire Gauge: 18 AWG
• Number of Poles: 1
• Terminal Type: Bullet
• Wire Type: Solid, Stranded
• Insulated: Yes
• Country of Origin: Taiwan
• UPC: 783250495498
• Vendor Alias: 83-8001
