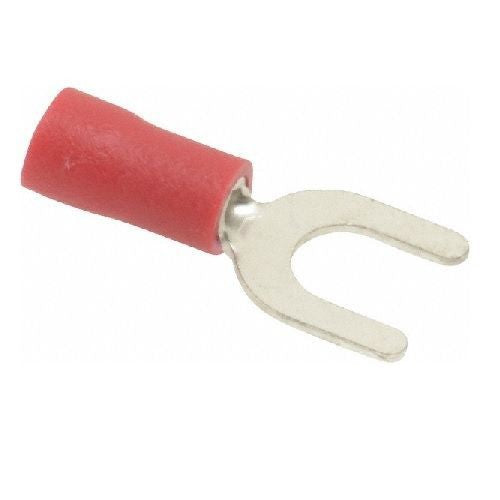

Ideal Industries 83-7011 Vinyl Insulated Snap Spade Terminal 22-18 #6 Stud 25/PK

Product Description

The IDEAL INDUSTRIES 83-7011 vinyl insulated snap spade terminal is designed for wire ranges from 22-18 and a #6 stud. These terminals are packaged in quantities of 25. The tin plated brass construction ensures corrosion resistance. They feature color-coded insulation for easy identification and are UL Listed and RoHS compliant.

• For wire range 22-18 AWG
• Stud Size: #6
• Constructed from tin plated brass

Product Highlights

The IDEAL INDUSTRIES 83-7011 vinyl insulated snap spade terminals offer a reliable connection for electrical systems. They are color-coded and made with durable materials.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-7011
• Country of Origin: Taiwan

Technical Specifications

• UNSPSC Code: 43223300
• ECCN: EAR99
• Country of Origin: Taiwan
• Insulation Material: Vinyl
• Barrel Size: 0.394 in L
• Material: Tin Plated Brass
• Overall Length: 0.827 in
• Standards/Approvals: RoHS Compliant|UL Listed
• Temperature Rating: 75 deg C
• Tongue Size: 0.252 in W
• Type: Insulated Snap Vinyl
• Voltage Rating: 600 VAC
• Conductor Size: 22 to 18 AWG
• ADI Part Number: IL-837011
• Brand Name: IDEAL Industries
• Manufacturer Part Number: 83-7011
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: Yes
• Finish: Tin-Plated
• Barrel Type: Beveled/Butted Seam
