Ideal Industries 83-6121 Bare Spade Terminal 22-18AWG #8 Stud 100Pk

Product Description

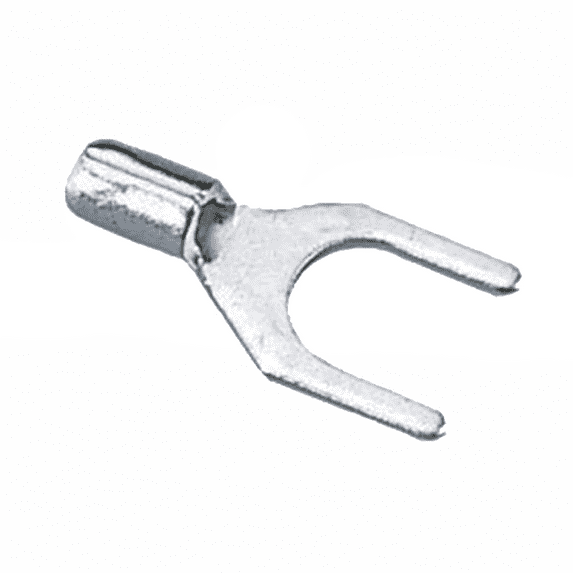

The IDEAL INDUSTRIES 83-6121 bare spade terminal is suitable for various electrical systems. These non-insulated terminals accommodate 22-18 AWG wires and feature a #8 stud size. The terminals are constructed from tin-plated brass for corrosion resistance and are UL Listed. They offer a butted seam-construction to prevent splitting under maximum pressure.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

Bare spade terminals with internal barrel serrations to grip wires tightly and reduce electrical resistance.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-6121
• Country of Origin: Taiwan

Technical Specifications

• Type: Bare Spade
• Brand: Ideal Industries
• Material: Brass
• Standard: RoHS,UL Listed
• Stud Size: 0.164 in
• Cable Size: 22 - 18 AWG
• Product UPC: 78325048992
• 12-Digit UPC: 783250489923
• Insulation Material: Non-Insulated
• ECCN: EAR99
• UNSPSC: 39121405
• Termination Method: Crimp
• Quantity: Pack of 100
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 105�C
• Maximum Wire Gauge: 22 to 18 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: No
