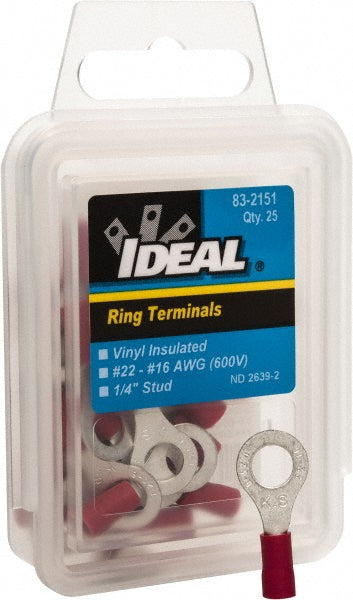

Ideal Industries 83-2151 Vinyl Insulated Ring Terminal 22-18 Awg, 1/4 inches 25/Pk

Product Description

The IDEAL INDUSTRIES 83-2151 vinyl insulated ring terminal is designed for electrical systems, accommodating 22-18 AWG wires and a 1/4" stud. These terminals feature butted-seam construction to prevent splitting under pressure and are color-coded for easy identification. They are constructed from tin-plated brass for corrosion resistance and have a voltage rating of 600 VAC.

• Butted-seam construction prevents splitting under maximum pressure
• Tin-plated brass construction for corrosion resistance
• Shouldered barrel insulation quickly positions terminal for proper crimping
• Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Product Highlights

These vinyl insulated ring terminals offer secure wire termination and corrosion resistance for a variety of electrical applications.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-2151
• Country of Origin: Taiwan

Technical Specifications

• UNSPSC Code: 43223300
• Type: Vinyl Ring
• Brand: Ideal Industries
• Material: Tin Plated Brass
• Stud Size: 1/4 in
• Cable Size: 22 - 18 AWG
• Product UPC: 78325048979
• 12-Digit UPC: 783250489794
• Number of Holes: 1 Hole
• ECCN: EAR99
• Country of Origin: TW - Taiwan
• UNSPSC: 39121405
• Insulation Material: Vinyl
• Barrel Size: 0.394 in L
• Overall Length: 1.055 in
• Standards/Approvals: RoHS Compliant|UL Listed
• Temperature Rating: 75 deg C
• Tongue Size: 0.457 in W
• Voltage Rating: 600 VAC
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167�F (75�C)
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Insulated: Yes
• Manufacturer Part Number: 83-2151
• Insulation Type: VINYL INSULATED
• Maximum Wire Insulation Diameter: 0.157 INCH
• Product Category: Ring Lug
• Commodity Code: 6411
• Compatible Wire Size (sq mm): 0.50 to 1.00
• Connection Type: Crimp
• Stud Size (mm): 6.40
• Ring Width (Decimal Inch): 0.3940
• Overall Length (Decimal Inch): 1.0550
