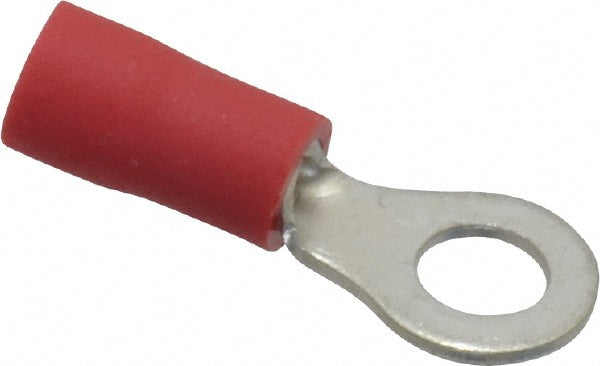

Ideal Industries 83-2131 Vinyl Insulated Ring Terminal 22-18 Awg, #8 25/Pk

Product Description

The IDEAL INDUSTRIES 83-2131 vinyl insulated ring terminal is designed for durability and ease of use. This ring terminal is color-coded for easy identification and features butted seam-construction to prevent splitting under maximum pressure. Designed for 22 to 18 AWG wires and #8 studs, it comes in a pack of 25.

• Butted-seam construction prevents splitting under maximum pressure
• Tin-plated brass construction for corrosion resistance
• Shouldered barrel insulation quickly positions terminal for proper crimping
• Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Product Highlights

The IDEAL INDUSTRIES vinyl insulated ring terminal ensures secure wire termination. Suitable for various electrical applications, it offers reliable performance and easy installation.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-2131
• Country of Origin: Taiwan

Technical Specifications

• UNSPSC Code: 43223300
• Type: Vinyl Ring
• Brand: Ideal Industries
• Material: Brass
• Stud Size: 0.164 in
• Cable Size: 22 - 18 AWG
• Number of Holes: 1 Hole
• ECCN: EAR99
• Country of Origin: Taiwan
• UNSPSC: 39121405
• Insulation Material: Vinyl
• Barrel Size: 0.394 in L
• Color: Red
• Conductor Size: 22 to 18 AWG
• Manufacturer Part Number: 83-2131
• Overall Length: 0.819 in
• Standards/Approvals: RoHS Compliant|UL Listed
• Temperature Rating: 75 deg C
• Tongue Size: 0.315 in W
• Voltage Rating: 600 VAC
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 75 deg C
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Insulated: Yes
• Barrel Type: Beveled/Butted Seam
• Compatible Wire Size (sq mm): 0.50 to 1.00
• Connection Type: Crimp
• Stud Size (#): 8
• Contact Material: Brass
• Ring Width (Decimal Inch): 0.3940
• Overall Length (Decimal Inch): 0.8190
• Standards: UL Listed; RoHS Compliant; cUL Listed
