Ideal Industries 83-0631 Non-Ins. Ring Term. 4A

Product Description

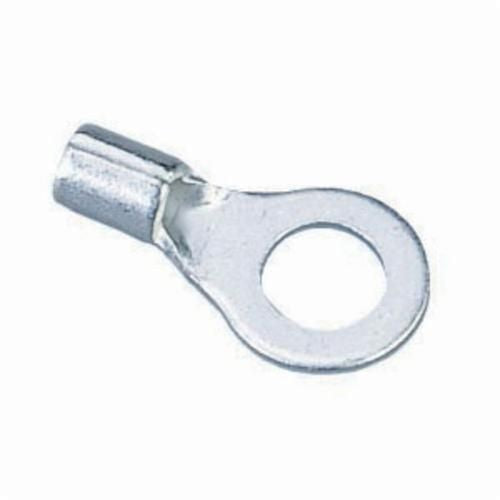

The IDEAL INDUSTRIES 83-0631 crimp terminals offer a reliable solution for electrical systems. These bare ring terminals are constructed from tin-plated brass for corrosion resistance. They accommodate a 4 AWG conductor and feature a 3/8 in stud size. The terminals are suitable for applications up to 600 VAC and 221 deg F.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

These non-insulated ring terminals ensure secure wire connections with corrosion resistance and reliable performance.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-0631
• Country of Origin: TW - Taiwan

Technical Specifications

• Type: Bare Ring
• Brand: Ideal Industries
• Material: Tin Plated Brass
• Standard: RoHS,UL Listed
• Stud Size: 3/8 in
• Cable Size: 4 AWG
• Product UPC: 78325048971
• 12-Digit UPC: 783250489718
• Number of Holes: 1 Hole
• Insulation Material: Non-Insulated
• Overall Length: 1.319 in
• Temperature Rating: 221 deg F
• Tongue Size: 0.65 in W
• Voltage Rating: 600 VAC
• Barrel Size: 0.472 in L
