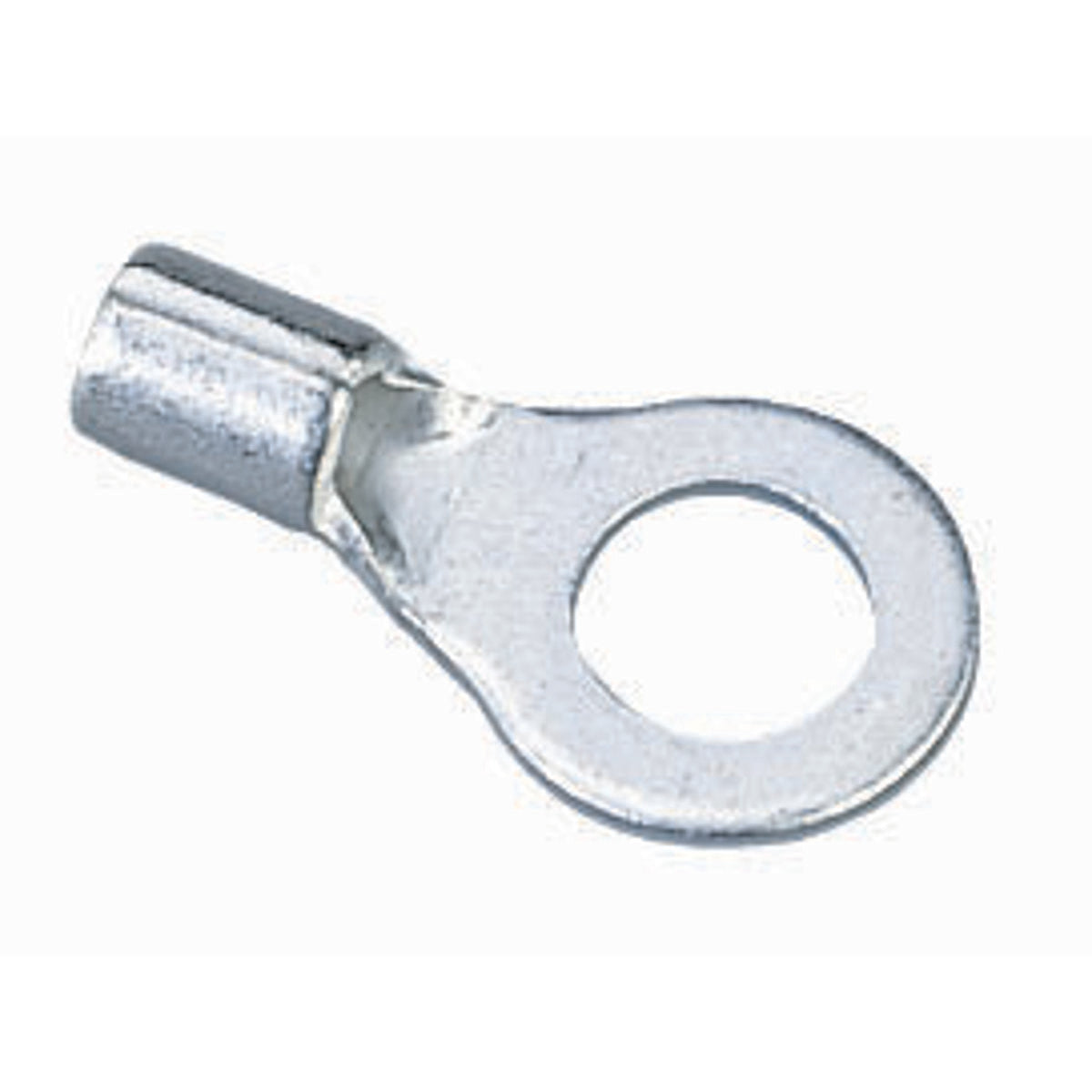

Ideal Industries 83-0341 Bare Ring Terminal #10 Stud 12-10AWG 25Pk

Product Description

The IDEAL INDUSTRIES 83-0341 crimp terminals offer a reliable solution for electrical systems. These bare ring terminals feature a butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction ensures corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

Bare ring terminals with butted seam-construction, internal barrel serrations and tin-plated brass construction.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 83-0341
• Country of Origin: United States

Technical Specifications

• Type: Bare Ring
• Brand: Ideal Industries
• Material: Brass
• Standard: RoHS,UL Listed
• Stud Size: 0.19 in
• Cable Size: 12 - 10 AWG
• Number of Holes: 1 Hole
• Insulation Material: Non-Insulated
• Overall Length: 0.772 in
• Temperature Rating: 221 deg F
• Tongue Size: 0.374 in W
• Voltage Rating: 600 VAC
• Barrel Size: 0.236 in L
• Conductor Size: 12 to 10 AWG
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature (C): 105°C
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
