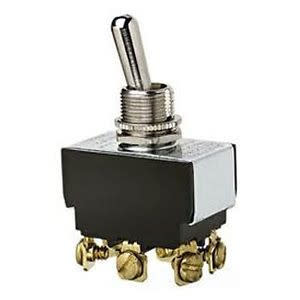

Ideal Industries 774016 1-1/2 Hp 10/20 Amp 125 to 277 VAC DPST On-Off-On Screw Terminal Heavy Duty Toggle Switch

Product Description

The Ideal Industries 774016 is a heavy-duty toggle switch designed for reliable control in various settings. It operates on voltage ratings of 125 to 277 VAC, making it suitable for a wide range of applications including power tools and motors. This switch features a DPDT (Double Pole Double Throw) action, allowing for efficient and safe operation.

• Durable construction with solid brass and nickel-plated bushings.
• Compatible with both 10 and 20 amp service.
• Factory tested for a lifespan of 100,000 cycles.

Product Highlights

This toggle switch is equipped with screw terminals for easy installation and has a compact size of 1.300 inches in length, 0.760 inches in width, and 0.800 inches in height.

Product Information

Standard Information

• Brand: Ideal Industries
• MPN: 774016

Technical Specifications

• Voltage Rating: 125 to 277 VAC
• Amperage Rating: 10/20 A
• Dielectric Strength: 1500 V
• Operating Cycles: 100000
• Temperature Rating: 32 to 185 °F
• Terminal Connection: Screw, 6 Terminals
• Contact Configuration: DPDT
• Power Rating: 1-1/2 HP at 125 to 250 VAC
