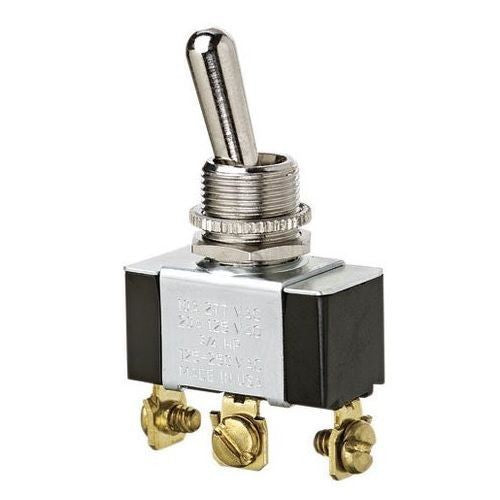

Ideal Industries 774013 3/4 Hp 10/20 Amp 125 to 277 VAC SPDT On-Off-On Screw Terminal Standard Toggle Switch

Product Description

The Ideal Industries 774013 is a toggle switch designed for various applications. It operates at a voltage range of 125 to 277 VAC and features a Single Pole Double Throw (SPDT) design. The switch connects via screw terminals and is suitable for power tool and motor control switch applications, ensuring reliable performance.

• Voltage Rating: 125 to 277 VAC
• Amperage Rating: 10/20 Amp
• Contact Rating: Factory Tested for 100,000 cycles

Product Highlights

This switch is built to handle demanding operational conditions while providing ease of use and installation.

Product Information

Standard Information

• Brand: Ideal Industries
• Manufacturer PN: 774013

Technical Specifications

• Type: SPDT (On-Off-On)
• Amperage Rating: 10/20 A
• Operating Cycles: 100,000 Cycles
• Operating Temperature: 32 to 185 Deg F
• Dielectric Strength: 1500 V
• Material: Solid Brass with Nickel-Plated Bushings
• Size: 1.13 in Length x 0.57 in Width x 0.61 in Height
• Mounting Type: Requires a 1/2 in Hole Diameter
