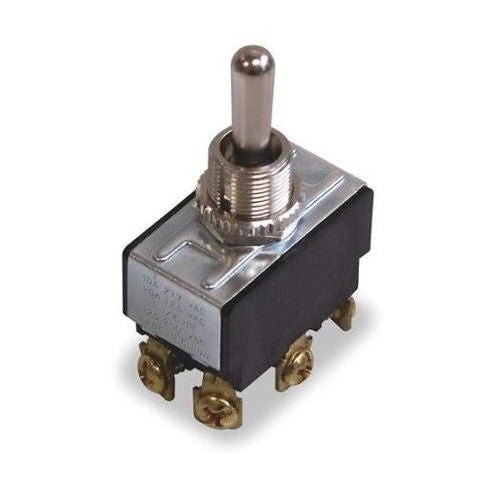

Ideal Industries 774000 Toggle Switch Std And Heavy-Duty (On)-Off-(On) CSA Ru Listed 125 277 Vac

Product Description

The Ideal Industries 774000 is a toggle switch suitable for heavy-duty use. This switch operates on 125-277 Volts AC and is an excellent choice for power tool and motor control applications. The switch features a rugged design with solid brass and nickel-plated bushings, ensuring durability and a long service life. The installation requires a mounting hole of half an inch in diameter.

• Designed for applications requiring power tool and motor control
• Includes a durable solid brass and nickel-plated bushing design
• Half-inch diameter mounting hole for easy installation

Product Highlights

This switch is UL listed and CSA certified, ideal for use in environments with strict safety standards. Its 2-pole configuration and DPDT action provide reliable performance.

Product Information

Standard Information

• Brand: Ideal Industries
• Manufacturer Part Number: 774000

Technical Specifications

• Voltage Rating: 125/277 Volt AC
• Amperage Rating: 20 Amp at 125 Volt, 10 Amp at 277 Volt
• Contact Configuration: DPDT
• Number of Poles: 2
• Dimensions: 1.3 Inch Length x 0.76 Inch Width x 0.8 Inch Height
• Dielectric Strength: 1500 Volt
• Operating Temperature: 0 to 85 degrees Celsius
• Termination: Screw with 6 terminals
