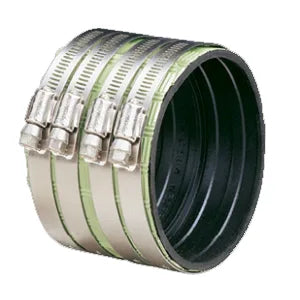

Ideal Industries 6223H8G Super Heavy Duty Green Shield No-Hub Couplings

Product Description

IDEAL INDUSTRIES 6223H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. These couplings feature a wider footprint on the joint and an increased number of high torque capacity clamps, adding structural rigidity and enhanced sealing pressure.

• Shield Material: 304 SS
• Fully certified to ASTM C1540, ASTM C564 and FM 1680 (Class 1 and 2)
• Installation Torque: 80 in-lbs

Product Highlights

Ideal for applications requiring an added safety margin against leakage, these couplings are certified to meet industry standards.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6223H8G
• Country of Origin: US

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
