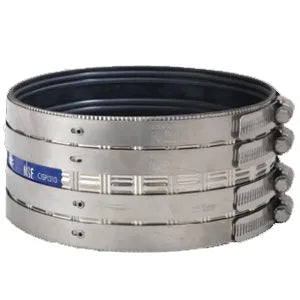

Ideal Industries 6222M8G Standard Duty No-Hub Coupling

Product Description

The IDEAL INDUSTRIES 6222M8G is a standard duty no-hub coupling made in the USA. It serves as a high-quality, low-cost alternative where structural reinforcement is not required. This coupling is in full compliance with ASTM 564, CISPI 310, and ASTM C1277, and carries IAPMO, Canadian Std Association, and NSF certification.

• Made in USA
• Compliant with ASTM 564, CISPI 310 and ASTM C1277
• Carries IAPMO, Canadian Std Association and NSF certification

Product Highlights

The IDEAL INDUSTRIES standard duty no-hub coupling connects no-hub cast iron pipe and is certified by major plumbing code bodies in the U.S. and Canada.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6222M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
