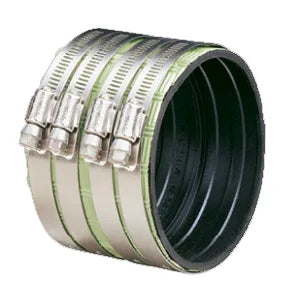

Ideal Industries 6222H8G Super Heavy Duty Green Shield® No-Hub Couplings 6 in

Product Description

The Ideal Tridon 6222H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. They feature a wider footprint on the joint and an increased number of high torque capacity clamps. These couplings add structural rigidity and enhanced sealing pressure.

• Quality line of Heavy Duty couplings
• Structural reinforcement and higher sealing pressures are required
• Wider footprint on the joint

Product Highlights

These couplings are fully certified to ASTM C1540, ASTM C564 and FM 1680 (Class 1 and 2), and carries IAPMO, and Canadian Std. Association certification

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6222H8G
• Country of Origin: US

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Brand: Ideal Tridon
• MFR Part No: 6222H8G
• TSCO Part Number: 1277627
• Size: 6 in
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• No. of Clamps Per Coupling: 6
