Ideal Industries 6221Y8G No-Hub Coupling MD

Product Description

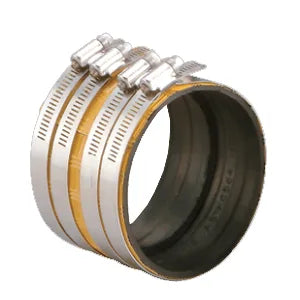

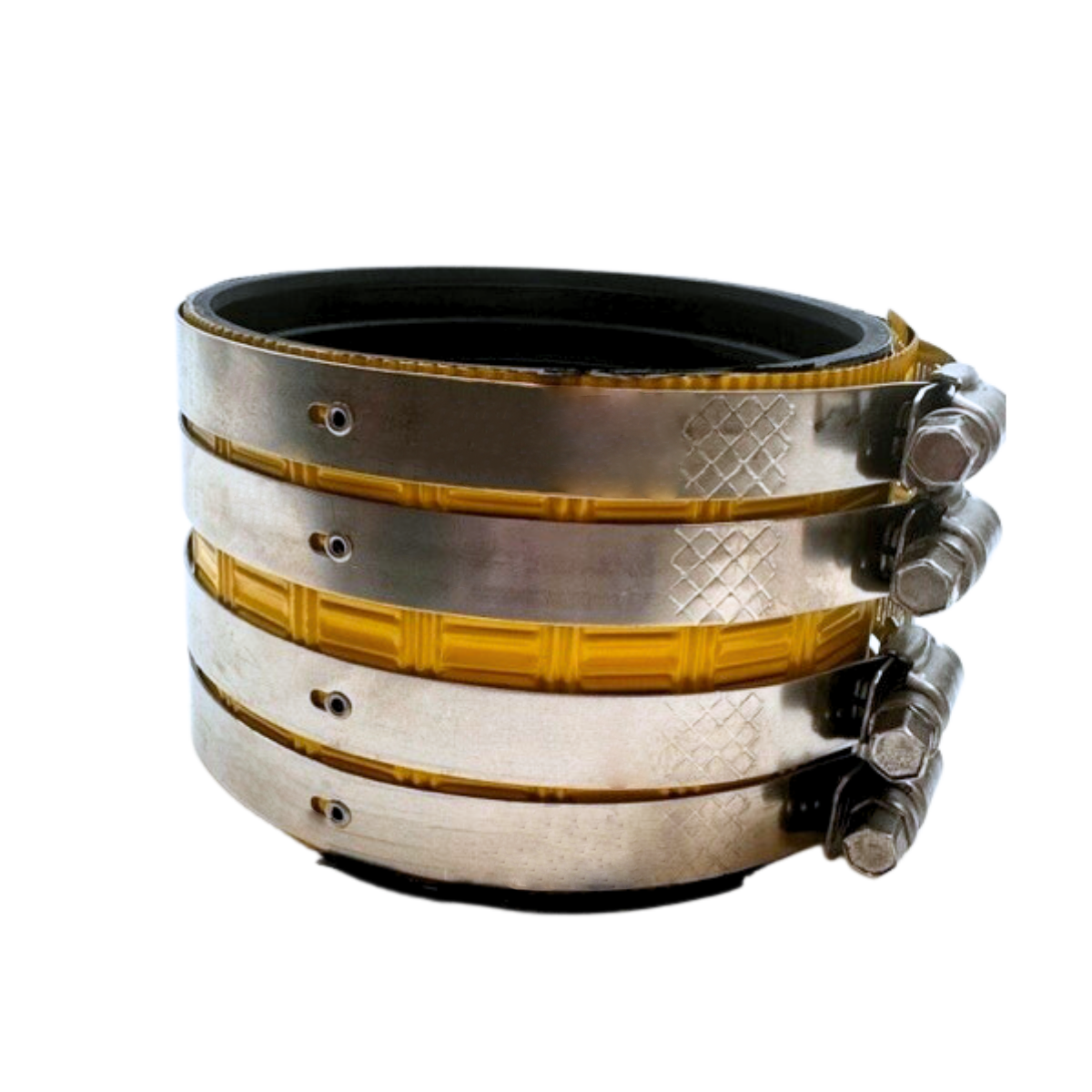

The IDEAL INDUSTRIES 6221Y8G No-Hub Coupling MD features a distinctive yellow shield for easy identification. The 5/16" hex-head screw applies 80 in-lbs of installation torque to the band/shield assembly. Ideal's unique shield design employs bi-directional corrugations for maximum transfer of pressure from the clamps to the gasket.

• Heavy Duty Yellow Shield
• 5/16 hex head screw
• Made in USA

Product Highlights

The coupling is in full compliance with ASTM 564, ASTM C1540, FM1680 (Class 1 and 2) and carries IAPMO, Canadian Std Association.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6221Y8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• No. of Clamps Per Coupling: 6
• Size (in.): 5
• Part No.: 6221Y8G
