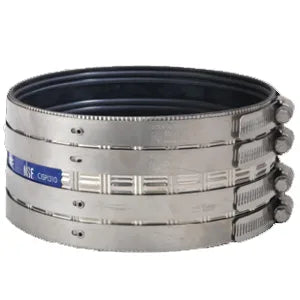

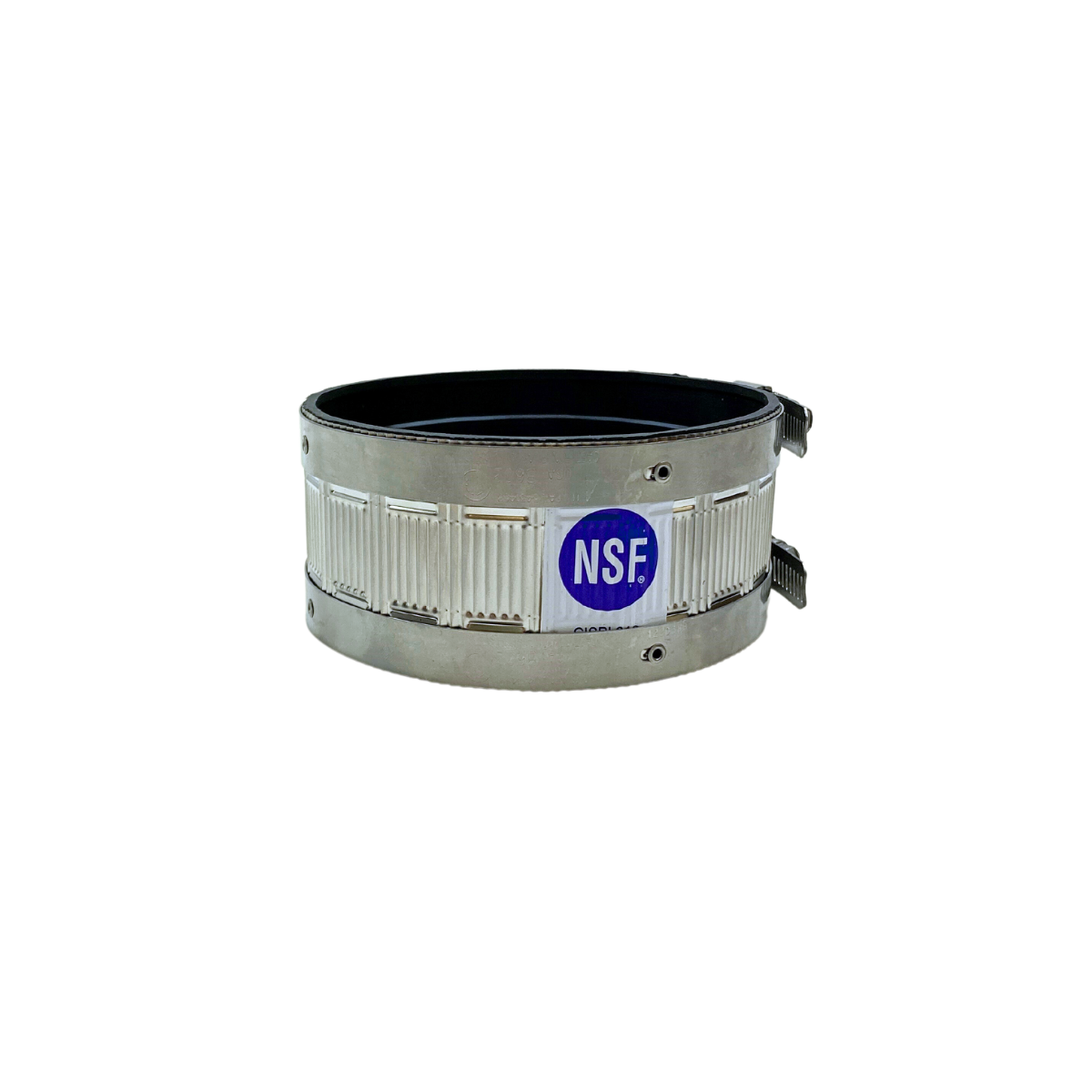

Ideal Industries 6221M8G Standard Duty No-Hub Coupling

Product Description

The IDEAL INDUSTRIES 6221M8G standard duty no-hub coupling is a high-quality, low-cost alternative for connecting no-hub cast iron pipe. Compliant with ASTM 564, CISPI 310, and ASTM C1277, it also carries IAPMO, Canadian Std Association, and NSF certification. Engineered as a replacement for less efficient hub and spigot material.

• Made in USA
• High quality low cost alternative
• In full compliance with ASTM 564, CISPI 310 and ASTM C1277

Product Highlights

The original no-hub coupling that has been in use since 1965. Installs at 60 in-lbs.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6221M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
