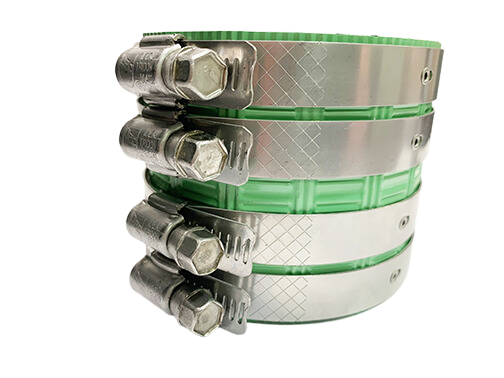

Ideal Industries 6220H8G No-Hub Couplings 4 inches

Product Description

The IDEAL INDUSTRIES 6220H8G No-Hub Couplings are heavy-duty couplings designed for structural reinforcement and higher sealing pressures. These couplings have a wider footprint on the joint and an increased number of high torque capacity clamps. They add structural rigidity and enhanced sealing pressure for reliable performance.

• Quality line of Heavy Duty couplings
• Structural reinforcement and higher sealing pressures are required
• Wider footprint on the joint

Product Highlights

These couplings feature a patented bi-directional shield design and specially beaded gaskets for superior sealing pressure and holding power. Ideal for applications requiring robust and reliable pipe connections.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6220H8G
• Country of Origin: US

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• No. of Clamps Per Coupling: 4
• Size (in.): 4"
• Part No.: 6220H8G
• Compliance: CISPI 310, Factory Mutual CN 1680, ASTM C564, ASTM 1277, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E
• Shield, Bands and Housings Material: AISI 304 Stainless Steel
• Screws and Eyelets Material: AISI 305 Stainless Steel
