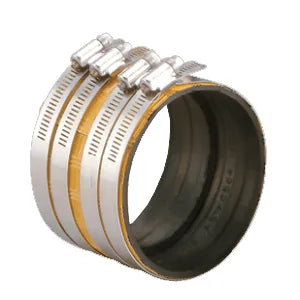

Ideal Industries 6219Y8G Heavy Duty No-Hub Coupling

Product Description

The IDEAL INDUSTRIES 6219Y8G Heavy Duty Yellow Shield No-Hub Coupling delivers performance at a competitive price point. It is made in the USA and fully compliant with ASTM 564, ASTM C1540, FM1680 (Class 1 and 2), and carries IAPMO and Canadian Std Association certifications.

• Provides all the performance of a Super Heavy Duty coupling but at a lower price point
• Uses a 5/16” hex head screw
• Ideal's unique shield design employs bi-directional corrugations for maximum transfer of pressure from the clamps to the gasket.

Product Highlights

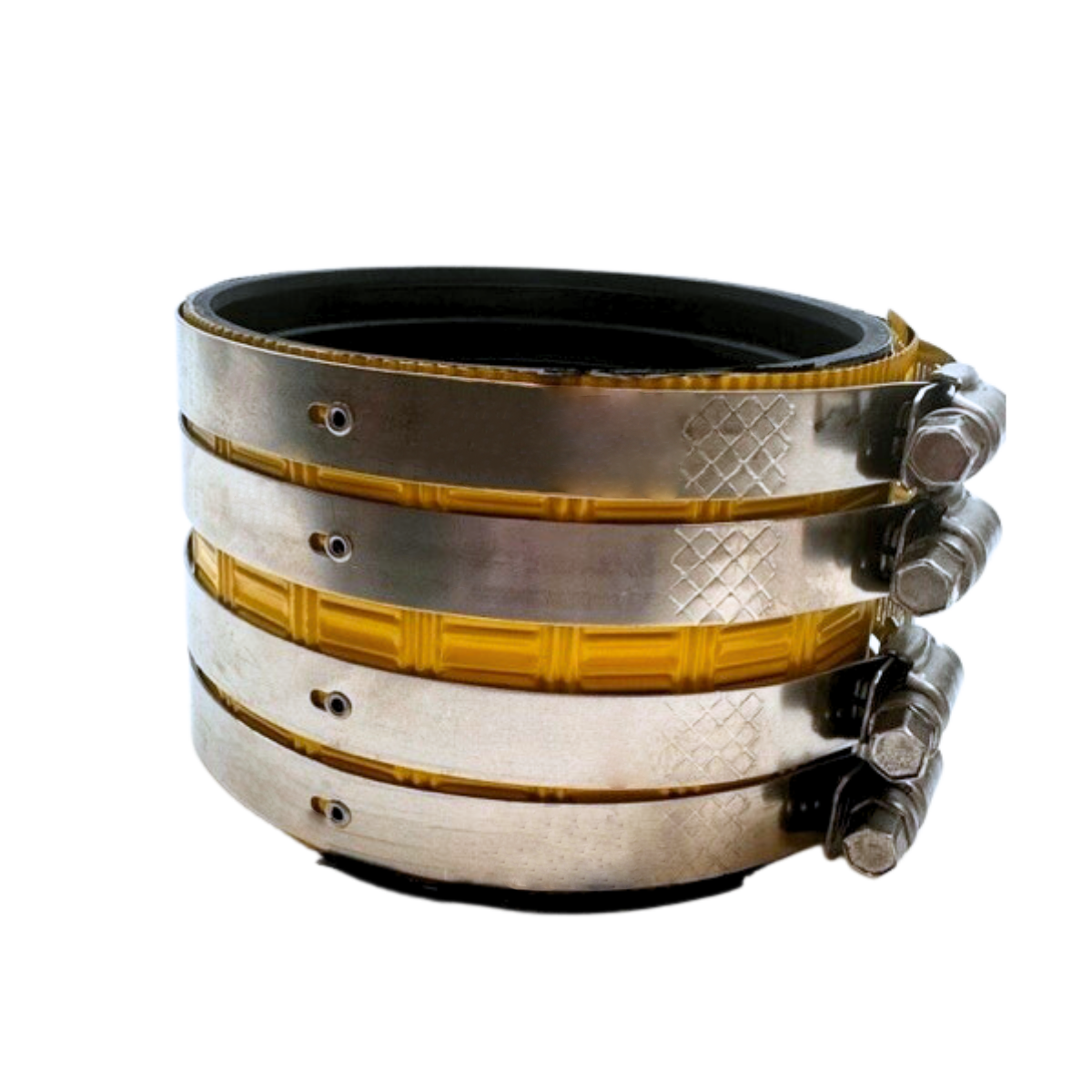

This heavy-duty coupling features a distinctive yellow shield for easy identification and a specially beaded gasket for superior sealing pressure and holding power.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6219Y8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• Size (in.): 3
• Part No.: 6219Y8G
• No. of Clamps Per Coupling: 4
• Materials: Steels used in couplings are stainless steels. Shields, bands and housings are AISI 304. Screws and eyelets are AISI 305. Gaskets are neoprene rubber.
• Specifications: Couplings conform to CISPI 310, Factory Mutual FM 1680. Couplings comply with ASTM C564, ASTM 1540, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564.
