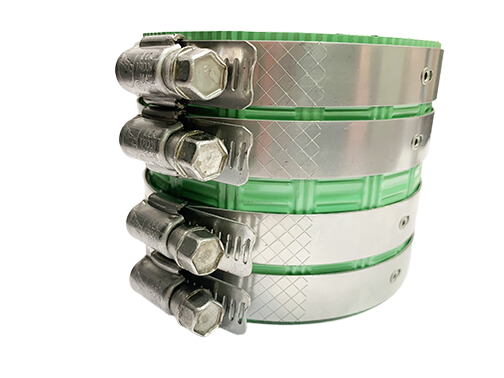

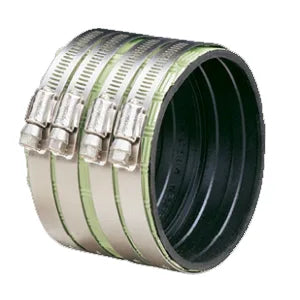

Ideal Industries 6219H8G Super Heavy Duty Green Shield No-Hub Couplings

Product Description

The IDEAL INDUSTRIES 6219H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. These couplings feature a wider footprint on the joint and an increased number of high torque capacity clamps. They add structural rigidity and enhanced sealing pressure.

• Quality line of Heavy Duty couplings
• Structural reinforcement and higher sealing pressures are required
• Wider footprint on the joint

Product Highlights

Ideal Tridon's Super Heavy Duty Green Shield® No-Hub Couplings provide structural reinforcement and enhanced sealing pressure for demanding applications.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6219H8G

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• Size (in.): 3"
• Part No.: 6219H8G
• No. of Clamps Per Coupling: 4
