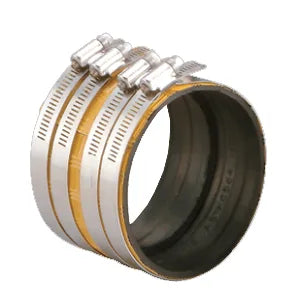

Ideal Industries 6218Y8G Heavy Duty No-Hub Coupling

Product Description

The IDEAL INDUSTRIES 6218Y8G Heavy Duty No-Hub Coupling provides the performance of a super heavy-duty coupling at a lower price point. It is made in the USA and fully compliant with ASTM 564, ASTM C1540, and FM1680 (Class 1 and 2). It also carries IAPMO and Canadian Standards Association certifications.

• Provides the performance of a super heavy-duty coupling at a lower price point
• Uses a 5/16” hex head screw
• Made in USA

Product Highlights

This heavy-duty coupling is a value-engineered alternative when performance criteria can’t be altered. The yellow shield identifies the IDEAL Heavy-Duty MD Couplings.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6218Y8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• No. Clamps Per Coupling: 4
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• Size (in.): 2
• Part No.: 6218Y8G
